LS-SF

Male SAE O-Ring Boss 90 Adjustable Elbow - Single Ferrule Tube Fitting

Our 316 stainless steel single ferrule instrumentation tube fittings deliver a trustworthy connection for a myriad of applications. The single ferrule design ensures a secure and robust seal, effectively reducing the risk of leaks and providing steady flow consistency. Built to withstand the challenges of varying vibration, temperature, and pressure, these fittings stand as a testament to resilience and reliability. They easily integrate into various instrumentation systems, fitting the requirements of multiple industries. With a focus on safety and operational excellence, these fittings consistently meet the demands of today's dynamic environments.

Material:316L Stainless Steel

Ferrule:Single Ferrule

Shaping:Forged

Bar Stock:ASTM A479, ASTM A276

Forging:ASTM B164

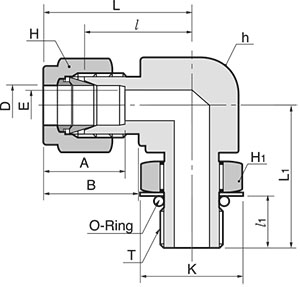

Dimensional Drawings

Technical Specs

Competitor Cross Reference

Material:

Size:

Item code	Item name	Qty	List price	Your price	Total
LS-10-10U-SF	5/8" Tube x 5/8" Male SAE ORB 90 Adj. Elbow Single Ferrule Stainless \| Tube Fittings	Quantity	List price $61.72	Your price	Total $61.72
LS-12-12U-SF	3/4" Tube x 3/4" Male SAE ORB 90 Adj. Elbow Single Ferrule Stainless \| Tube Fittings	Quantity	List price $79.03	Your price	Total $79.03
LS-14-14U-SF	7/8" Tube x 7/8" Male SAE ORB 90 Adj. Elbow Single Ferrule Stainless \| Tube Fittings	Quantity	List price $92.83	Your price	Total $92.83
LS-16-16U-SF	1" Tube x 1" Male SAE ORB 90 Adj. Elbow Single Ferrule Stainless \| Tube Fittings	Quantity	List price $138.59	Your price	Total $138.59
LS-20-20U-SF	1 1/4" Tube x 1 1/4" Male SAE ORB 90 Adj. Elbow Single Ferrule Stainless \| Tube Fittings	Quantity	List price $56.25	Your price	Total $56.25
LS-24-24U-SF	1 1/2" Tube x 1 1/2" Male SAE ORB 90 Adj. Elbow Single Ferrule Stainless \| Tube Fittings	Quantity	List price $56.25	Your price	Total $56.25
LS-32-32U-SF	2" Tube x 2" Male SAE ORB 90 Adj. Elbow Single Ferrule Stainless \| Tube Fittings	Quantity	List price $56.25	Your price	Total $56.25
LS-4-4U-SF	1/4" Tube x 1/4" Male SAE ORB 90 Adj. Elbow Single Ferrule Stainless \| Tube Fittings	Quantity	List price $19.59	Your price	Total $19.59
LS-4-6U-SF	1/4" Tube x 3/8" Male SAE ORB 90 Adj. Elbow Single Ferrule Stainless \| Tube Fittings	Quantity	List price $56.25	Your price	Total $56.25
LS-5-5U-SF	5/16" Tube x 5/16" Male SAE ORB 90 Adj. Elbow Single Ferrule Stainless \| Tube Fittings	Quantity	List price $23.75	Your price	Total $23.75
LS-6-6U-SF	3/8" Tube x 3/8" Male SAE ORB 90 Adj. Elbow Single Ferrule Stainless \| Tube Fittings	Quantity	List price $30.18	Your price	Total $30.18
LS-6-8U-SF	3/8" Tube x 1/2" Male SAE ORB 90 Adj. Elbow Single Ferrule Stainless \| Tube Fittings	Quantity	List price $42.80	Your price	Total $42.80
LS-8-8U-SF	1/2" Tube x 1/2" Male SAE ORB 90 Adj. Elbow Single Ferrule Stainless \| Tube Fittings	Quantity	List price $44.07	Your price	Total $44.07

Items of 13 items

Page:of 1
