CF-SF - NPT Female Connector | Tube Fittings
CF-SF NPT Connector SF  sold by Titanfittings.com


Stainless Tube Fitting Female Pipe NPT


Material: 316 Stainless Steel
Bar Stock: ASTM A479, ASTM A276
Forging: ASTM B164
CF-SF - Female NPT Connector

Item# Item Name Our Price Qty Add
CF-1-1N-SF CF-01-01N-SF- 1/16" Tube x 1/16" Female NPT Connector - Single Ferrule Stainless | Tube Fittings
$15.29
CF-2-2N-SF CF-02-02N-SF - 1/8" Tube x 1/8" Female NPT Connector - Single Ferrule Stainless | Tube Fittings
$11.68
CF-2-4N-SF CF-02-04N-SF - 1/8" Tube x 1/4" Female NPT Connector - Single Ferrule Stainless | Tube Fittings
$12.19
CF-3-2N-SF CF-03-02N-SF- 3/16" Tube x 1/8" Female NPT Connector - Single Ferrule Stainless | Tube Fittings
$11.21
CF-4-2N-SF CF-04-02N-SF - 1/4" Tube x 1/8" Female NPT Connector - Single Ferrule Stainless | Tube Fittings
$10.18
CF-4-4N-SF CF-04-04N-SF - 1/4" Tube x 1/4" Female NPT Connector - Single Ferrule Stainless | Tube Fittings
$11.77
CF-4-6N-SF CF-04-06N-SF - 1/4" Tube x 3/8" Female NPT Connector - Single Ferrule Stainless | Tube Fittings
$13.70
CF-4-8N-SF CF-04-08N-SF - 1/4" Tube x 1/2" Female NPT Connector - Single Ferrule Stainless | Tube Fittings
$15.10
CF-5-2N-SF CF-05-02N-SF - 5/16" Tube x 1/8" Female NPT Connector - Single Ferrule Stainless | Tube Fittings
$11.68
CF-5-4N-SF CF-05-04N-SF - 5/16" Tube x 1/4" Female NPT Connector - Single Ferrule Stainless | Tube Fittings
$12.19
CF-6-2N-SF CF-06-02N-SF - 3/8" Tube x 1/8" Female NPT Connector - Single Ferrule Stainless | Tube Fittings
$13.11
CF-6-4N-SF CF-06-04N-SF - 3/8" Tube x 1/4" Female NPT Connector - Single Ferrule Stainless | Tube Fittings
$13.29
CF-6-6N-SF CF-06-06N-SF - 3/8" Tube x 3/8" Female NPT Connector - Single Ferrule Stainless | Tube Fittings
$14.30
CF-6-8N-SF CF-06-08N-SF - 3/8" Tube x 1/2" Female NPT Connector - Single Ferrule Stainless | Tube Fittings
$19.18
CF-6-12N-SF CF-06-12N-SF - 3/8" Tube x 3/4" Female NPT Connector - Single Ferrule Stainless | Tube Fittings
$24.59
CF-8-4N-SF CF-08-04N-SF - 1/2" Tube x 1/4" Female NPT Connector - Single Ferrule Stainless | Tube Fittings
$17.59
CF-8-6N-SF CF-08-06N-SF - 1/2" Tube x 3/8" Female NPT Connector - Single Ferrule Stainless | Tube Fittings
$17.97
CF-8-8N-SF CF-08-08N-SF - 1/2" Tube x 1/2" Female NPT Connector - Single Ferrule Stainless | Tube Fittings
$21.46
CF-8-12N-SF CF-08-12N-SF - 1/2" Tube x 3/4" Female NPT Connector - Single Ferrule Stainless | Tube Fittings
$24.79
CF-10-6N-SF CF-10-6N-SF - 5/8" Tube x 3/8" Female NPT Connector - Single Ferrule Stainless | Tube Fittings
$21.85
CF-10-8N-SF CF-10-8N-SF - 5/8" Tube x 1/2" Female NPT Connector - Single Ferrule Stainless | Tube Fittings
$24.36
CF-12-12N-SF CF-12-12N-SF - 3/4" Tube x 3/4" Female NPT Connector - Single Ferrule Stainless | Tube Fittings
$30.68
CF-12-8N-SF CF-12-8N-SF - 3/4" Tube x 1/2" Female NPT Connector - Single Ferrule Stainless | Tube Fittings
$27.20
CF-14-12N-SF CF-14-12N-SF - 7/8" Tube x 3/4" Female NPT Connector - Single Ferrule Stainless | Tube Fittings
$42.18
CF-16-12N-SF CF-16-12N-SF - 1" Tube x 3/4" Female NPT Connector - Single Ferrule Stainless | Tube Fittings
$49.45
CF-16-16N-SF CF-16-16N-SF - 1" Tube x 1" Female NPT Connector - Single Ferrule Stainless | Tube Fittings
$55.75
Check the items you wish to purchase, then click


Features:
Tube Fitting Material: 316 Stainless Steel



Product Details:
Pressure Ratings:
Tube O.D.
(inch)
TUBE WALL THICKNESS (inch)
0.010 0.012 0.014 0.016 0.020 0.028 0.035 0.049 0.065 0.083 0.095 0.109 0.120
1/16 5600 6800 8100 9400 12000
1/8 8500 10900
3/16 5400 7000 10200
1/4 4000 5100 7500 10200
5/16 4000 5800 8000
3/8 3300 4800 6500
1/2 2600 3700 5100 6700
5/8 2900 4000 5200 6000
3/4 2400 3300 4200 4900 5800
7/8 2000 2800 3600 4200 4800
1 2400 3100 3600 4200 4700
= Tubing working pressure (psi)

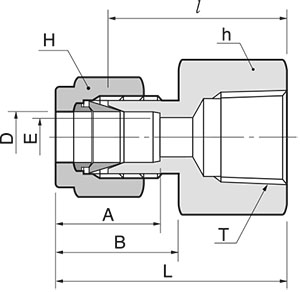

Dimensional Drawings:
CONNECTS FRACTIONAL TUBE TO FEMALE NPT THREAD
Tube O.D.T*dWidth Across Flat
Part No.D (inch)(NPT)Minh (inch)H (inch)ABIL
CF 2-2N1/81/82.289/167/1612.715.2422.0928.7
CF 2-4N1/81/42.283/47/1612.715.2426.9233.52
CF 3-2N3/161/83.049/161/213.711623.1129.71
CF 4-2N1/41/84.829/169/1615.2417.7823.8731.24
CF 4-4N1/41/44.823/49/1615.2417.7828.4435.81
CF 4-6N1/43/84.827/89/1615.2417.7830.2237.59
CF 4-8N1/41/24.821-1/169/1615.2417.7835.0542.41
CF 5-2N5/161/86.359/169/1616.2518.5424.6332
CF 5-4N5/161/46.353/45/816.2518.5429.4636.83
CF 6-2N3/81/87.115/85/816.7619.325.432.76
CF 6-4N3/81/47.113/411/1616.7619.330.2237.59
CF 6-6N3/83/87.117/811/1616.7619.331.7539.11
CF 6-8N3/81/27.111-1/1611/1616.7619.336.5743.94
CF 6-12N3/83/47.111-5/1611/1616.7619.340.3847.75
CF 8-4N1/21/410.4113/167/822.8621.8430.2240.38
CF 8-6N1/23/810.417/87/822.8621.8431.7541.91
CF 8-8N1/21/210.411-1/167/822.8621.8436.5746.73
CF 8-12N1/23/410.411-5/167/822.8621.8438.148.26
CF 10-6N5/83/812.715/16124.3821.8431.7541.91
CF 10-8N5/81/212.71-1/16124.3821.8436.5746.73
CF 12-8N3/41/215.741-1/161-1/824.3821.8436.5746.73
CF 12-12N3/43/415.741-5/161-1/824.3821.8438.148.26
CF 14-12N7/83/418.281-5/161-1/425.921.8439.6249.78
CF 16-12N13/422.351-3/81-1/231.2426.4141.1453.34
CF 16-16N1122.351-3/81-1/231.2426.4150.0362.23
Competitor Cross Reference:
COMPETITOR PART NUMBER
ITEM #SWAGELOKSSP DUOLOKPARKER A-LOK
CF 2-2NSS-200-7-2ISSD2CF22FSC2N-SS
CF 2-4NSS-200-7-4ISSD2CF42FSC4N-SS
CF 3-2NSS-300-7-2ISSD3CF23FSC2N-SS
CF 4-2NSS-400-7-2ISSD4CF24FSC2N-SS
CF 4-4NSS-400-7-4ISSD4CF44FSC4N-SS
CF 4-6NSS-400-7-6ISSD4CF64FSC6N-SS
CF 4-8NSS-400-7-8ISSD4CF84FSC8N-SS
CF 5-2NSS-500-7-2ISSD5CF25FSC2N-SS
CF 5-4NSS-500-7-4ISSD5CF45FSC4N-SS
CF 6-2NSS-600-7-2ISSD6CF26FSC2N-SS
CF 6-4NSS-600-7-4ISSD6CF46FSC4N-SS
CF 6-6NSS-600-7-6ISSD6CF66FSC6N-SS
CF 6-8NSS-600-7-8ISSD6CF86FSC8N-SS
CF 6-12NSS-600-7-12ISSD6CF126FSC12N-SS
CF 8-4NSS-810-7-4ISSD8CF48FSC4N-SS
CF 8-6NSS-810-7-6ISSD8CF68FSC6N-SS
CF 8-8NSS-810-7-8ISSD8CF88FSC8N-SS
CF 8-12NSS-810-7-12ISSD8CF128FSC12N-SS
CF 10-6NSS-1010-7-6ISSD10CF610FSC6N-SS
CF 10-8NSS-1010-7-8ISSD10CF810FSC8N-SS
CF 12-8NSS-1210-7-8ISSD12CF812FSC8N-SS
CF 12-12NSS-1210-7-12ISSD12CF1212FSC12N-SS
CF 14-12NSS-1410-7-12ISSD14CF1214FSC12N-SS
CF 16-12NSS-1610-7-12ISSD16CF1216FSC12N-SS
CF 16-16NSS-1610-7-16ISSD16CF1616FSC16N-SS
