LM-SF - NPT Male 90 Elbow | Tube Fittings
LM-SF Male Pipe NPT Elbow SF  sold by Titanfittings.com


Stainless Tube Fitting Male Pipe NPT 90 Elbow


Material: 316 Stainless Steel
Bar Stock: ASTM A479, ASTM A276
Forging: ASTM B164
LM-SF - Male NPT Elbow

Item# Item Name Our Price Qty Add
LM-1-1N-SF LM-01-01N-SF - 1/16 Tube x 1/16" Male NPT 90 Elbow - Single Ferrule Stainless | Tube Fittings
$21.22
LM-2-2N-SF LM-02-02N-SF - 1/8 Tube x 1/8" Male NPT 90 Elbow - Single Ferrule Stainless | Tube Fittings
$14.03
LM-2-4N-SF LM-02-04N-SF - 1/8 Tube x 1/4" Male NPT 90 Elbow - Single Ferrule Stainless | Tube Fittings
$14.24
LM-3-2N-SF LM-03-02N-SF - 3/16" Tube x 1/8" Male NPT 90 Elbow - Single Ferrule Stainless | Tube Fittings
$14.03
LM-3-4N-SF LM-03-04N-SF - 3/16" Tube x 1/4" Male NPT 90 Elbow - Single Ferrule Stainless | Tube Fittings
$15.04
LM-4-2N-SF LM-04-02N-SF - 1/4" Tube x 1/8" Male NPT 90 Elbow - Single Ferrule Stainless | Tube Fittings
$14.03
LM-4-4N-SF LM-04-04N-SF - 1/4" Tube x 1/4" Male NPT 90 Elbow - Single Ferrule Stainless | Tube Fittings
$13.49
LM-4-6N-SF LM-04-06N-SF - 1/4" Tube x 3/8" Male NPT 90 Elbow - Single Ferrule Stainless | Tube Fittings
$16.19
LM-4-8N-SF LM-04-08N-SF - 1/4" Tube x 1/2" Male NPT 90 Elbow - Single Ferrule Stainless | Tube Fittings
$20.60
LM-5-2N-SF LM-05-02N-SF - 5/16" Tube x 1/8" Male NPT 90 Elbow - Single Ferrule Stainless | Tube Fittings
$13.45
LM-5-4N-SF LM-05-04N-SF - 5/16" Tube x 1/4" Male NPT 90 Elbow - Single Ferrule Stainless | Tube Fittings
$13.85
LM-5-6N-SF LM-05-06N-SF - 5/16" Tube x 3/8" Male NPT 90 Elbow - Single Ferrule Stainless | Tube Fittings
$16.52
LM-6-2N-SF LM-06-02N-SF - 3/8" Tube x 1/8" Male NPT 90 Elbow - Single Ferrule Stainless | Tube Fittings
$16.22
LM-6-4N-SF LM-06-04N-SF - 3/8" Tube x 1/4" Male NPT 90 Elbow - Single Ferrule Stainless | Tube Fittings
$16.65
LM-6-6N-SF LM-06-06N-SF - 3/8" Tube x 3/8" Male NPT 90 Elbow - Single Ferrule Stainless | Tube Fittings
$17.40
LM-6-8N-SF LM-06-08N-SF - 3/8" Tube x 1/2" Male NPT 90 Elbow - Single Ferrule Stainless | Tube Fittings
$22.30
LM-6-12N-SF LM-06-12N-SF - 3/8" Tube x 3/4" Male NPT 90 Elbow - Single Ferrule Stainless | Tube Fittings
$30.45
LM-8-4N-SF LM-08-04N-SF - 1/2" Tube x 1/4" Male NPT 90 Elbow - Single Ferrule Stainless | Tube Fittings
$19.78
LM-8-6N-SF LM-08-06N-SF - 1/2" Tube x 3/8" Male NPT 90 Elbow - Single Ferrule Stainless | Tube Fittings
$19.78
LM-8-8N-SF LM-08-08N-SF - 1/2" Tube x 1/2" Male NPT 90 Elbow - Single Ferrule Stainless | Tube Fittings
$25.37
LM-8-12N-SF LM-08-12N-SF - 1/2" Tube x 3/4" Male NPT 90 Elbow - Single Ferrule Stainless | Tube Fittings
$30.98
LM-10-12N-SF LM-10-12N-SF - 5/8" Tube x 3/4" Male NPT 90 Elbow - Single Ferrule Stainless | Tube Fittings
$33.71
LM-10-6N-SF LM-10-6N-SF - 5/8" Tube x 3/8" Male NPT 90 Elbow - Single Ferrule Stainless | Tube Fittings
$25.85
LM-10-8N-SF LM-10-8N-SF - 5/8" Tube x 1/2" Male NPT 90 Elbow - Single Ferrule Stainless | Tube Fittings
$28.09
LM-12-12N-SF LM-12-12N-SF - 3/4" Tube x 3/4" Male NPT 90 Elbow - Single Ferrule Stainless | Tube Fittings
$34.41
LM-12-8N-SF LM-12-8N-SF - 3/4" Tube x 1/2" Male NPT 90 Elbow - Single Ferrule Stainless | Tube Fittings
$32.20
LM-14-12N-SF LM-14-12N-SF - 7/8" Tube x 3/4" Male NPT 90 Elbow - Single Ferrule Stainless | Tube Fittings
$45.11
LM-16-12N-SF LM-16-12N-SF - 1" Tube x 3/4" Male NPT 90 Elbow - Single Ferrule Stainless | Tube Fittings
$47.08
LM-16-16N-SF LM-16-16N-SF - 1" Tube x 1" Male NPT 90 Elbow - Single Ferrule Stainless | Tube Fittings
$56.05
LM-20-20N-SF LM-20-20N-SF - 1 1/4" Tube x 1 1/4" Male NPT 90 Elbow - Single Ferrule Stainless | Tube Fittings
$161.82
LM-24-24N-SF LM-24-24N-SF - 1 1/2" Tube x 1 1/2" Male NPT 90 Elbow - Single Ferrule Stainless | Tube Fittings
$213.79
LM-32-32N-SF LM-32-32N-SF - 2" Tube x 2" Male NPT 90 Elbow - Single Ferrule Stainless | Tube Fittings
$492.64
Check the items you wish to purchase, then click


Features:
Tube Fitting Material: 316 Stainless Steel



Product Details:
Pressure Ratings:
Tube O.D.
(inch)
TUBE WALL THICKNESS (inch)
0.010 0.012 0.014 0.016 0.020 0.028 0.035 0.049 0.065 0.083 0.095 0.109 0.120
1/16 5600 6800 8100 9400 12000
1/8 8500 10900
3/16 5400 7000 10200
1/4 4000 5100 7500 10200
5/16 4000 5800 8000
3/8 3300 4800 6500
1/2 2600 3700 5100 6700
5/8 2900 4000 5200 6000
3/4 2400 3300 4200 4900 5800
7/8 2000 2800 3600 4200 4800
1 2400 3100 3600 4200 4700
= Tubing working pressure (psi)

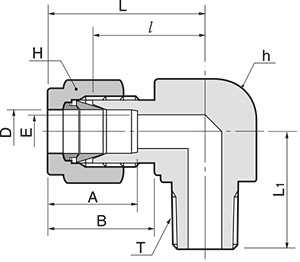

DiLMnsional Drawings:
CONNECTS FRACTIONAL TUBE TO FEMALE NPT THREAD
Tube O.D.TdWidth Across Flat
Part No.D (inch)(NPT)Minh (inch)H (inch)ABILL1
LM 2-2N1/81/82.281/27/1612.715.241824.318.8
LM 2-4N1/81/42.281/27/1612.715.241824.323.36
LM 3-2N3/161/83.041/21/213.711618.7925.418.79
LM 3-4N3/161/43.041/21/213.711618.7925.423.36
LM 4-2N1/41/84.821/29/1615.2417.7819.5526.9218.79
LM 4-4N1/41/44.821/29/1615.2417.7819.5526.9223.36
LM 4-6N1/43/84.825/89/1615.2417.7822.3529.7126.16
LM 4-8N1/41/24.8213/169/1615.2417.7824.3831.7533.02
LM 5-2N5/161/84.829/165/816.2518.5421.3328.719.81
LM 5-4N5/161/46.359/165/816.2518.5421.3328.724.38
LM 5-6N5/163/86.3511/165/816.2518.5423.1130.4826.16
LM 6-2N3/81/84.825/811/1616.7619.323.1130.4820.82
LM 6-4N3/81/47.115/811/1616.7619.323.1130.4825.4
LM 6-6N3/83/87.115/811/1616.7619.323.8731.2426.16
LM 6-8N3/81/27.1113/1611/1616.7619.325.933.2733.02
LM 6-12N3/83/47.111-1/1611/1616.7619.329.7137.0836.83
LM 8-4N1/21/47.1113/167/822.8621.8425.936.0628.19
LM 8-6N1/23/89.6513/167/822.8621.8425.936.0628.19
LM 8-8N1/21/210.4113/167/822.8621.8425.936.0633.02
LM 8-12N1/23/410.411-1/167/822.8621.8429.7139.8736.83
LM 10-6N5/83/89.6515/16124.3821.8427.9438.130.22
LM 10-8N5/81/211.9315/16124.3821.8427.9438.135.1
LM 10-12N5/83/412.71-1/16124.3821.8429.7139.8736.83
LM 12-8N3/41/211.931-1/161-1/824.3821.8429.7139.8736.83
LM 12-12N3/43/415.741-1/161-1/824.3821.8429.7139.8736.83
LM 14-12N7/83/415.741-3/81-1/425.921.8434.5444.741.65
LM 16-12N13/415.741-3/81-1/231.2426.4136.8349.0241.65
LM 16-16N1122.351-3/81-1/231.2426.4136.8349.0246.48
LM 20-20N1-1/41-1/427.691-11/161-7/841.1538.8644.4566.5547.75
LM 24-24N1-1/21-1/234.0422-1/450.0445.2150.877.9860.45
LM 32-32N2245.972-3/4367.5662.7469.85107.1970.61
Competitor Cross Reference:
COMPETITOR PART NUMBER
ITEM #SWAGELOKSSP DUOLOKPARKER A-LOK
LM 2-2NSS-200-2-2ISSD2LM22MSEL2N-SS
LM 2-4NSS-200-2-4ISSD2LM42MSEL4N-SS
LM 3-2NSS-300-2-2ISSD3LM23MSEL2N-SS
LM 3-4NSS-300-2-4ISSD3LM43MSEL4N-SS
LM 4-2NSS-400-2-2ISSD4LM24MSEL2N-SS
LM 4-4NSS-400-2-4ISSD4LM44MSEL4N-SS
LM 4-6NSS-400-2-6ISSD4LM64MSEL6N-SS
LM 4-8NSS-400-2-8ISSD4LM84MSEL8N-SS
LM 5-2NSS-500-2-2ISSD5LM25MSEL2N-SS
LM 5-4NSS-500-2-4ISSD5LM45MSEL4N-SS
LM 5-6NSS-500-2-6ISSD5LM65MSEL6N-SS
LM 6-2NSS-600-2-2ISSD6LM26MSEL2N-SS
LM 6-4NSS-600-2-4ISSD6LM46MSEL4N-SS
LM 6-6NSS-600-2-6ISSD6LM66MSEL6N-SS
LM 6-8NSS-600-2-8ISSD6LM86MSEL8N-SS
LM 6-12NSS-600-2-12ISSD6LM126MSEL12N-SS
LM 8-4NSS-810-2-4ISSD8LM48MSEL4N-SS
LM 8-6NSS-810-2-6ISSD8LM68MSEL6N-SS
LM 8-8NSS-810-2-8ISSD8LM88MSEL8N-SS
LM 8-12NSS-810-2-12ISSD8LM128MSEL12N-SS
LM 10-6NSS-1010-2-6ISSD10LM610MSEL6N-SS
LM 10-8NSS-1010-2-8ISSD10LM810MSEL8N-SS
LM 10-12NSS-1010-2-12ISSD10LM1210MSEL12N-SS
LM 12-8NSS-1210-2-8ISSD12LM812MSEL8N-SS
LM 12-12NSS-1210-2-12ISSD12LM1212MSEL12N-SS
LM 14-12NSS-1410-2-12ISSD14LM1214MSEL12N-SS
LM 16-12NSS-1610-2-12ISSD16LM1216MSEL12N-SS
LM 16-16NSS-1610-2-16ISSD16LM1616MSEL16N-SS
LM 20-20NSS-2000-2-20ISSD20LM2020MSEL20N-SS
LM 24-24NSS-2400-2-24ISSD24LM2424MSEL24N-SS
LM 32-32NSS-3200-2-32ISSD32LM3232MSEL32N-SS
