I-SF - Insert | Tube Fittings
I-SF Insert SF  sold by Titanfittings.com


Stainless Tube Fitting Insert


Material: 316 Stainless Steel
Bar Stock: ASTM A479, ASTM A276
Forging: ASTM B164
I-SF - Insert

Item# Item Name Our Price Qty Add
I-3-2-SF I-03-02-SF - 3/16" OD x 1/8" ID Tube Insert - Single Ferrule Stainless | Tube Fittings
$2.64
I-4-2-SF I-04-02-SF - 1/4" OD x 1/8" ID Tube Insert - Single Ferrule Stainless | Tube Fittings
$2.47
I-4-3-SF I-04-03-SF - 1/4" OD x 3/16" ID Tube Insert - Single Ferrule Stainless | Tube Fittings
$2.47
I-5-2-SF I-05-02-SF - 5/16" OD x 1/8" ID Tube Insert - Single Ferrule Stainless | Tube Fittings
$2.82
I-5-3-SF I-05-03-SF - 5/16" OD x 3/16" ID Tube Insert - Single Ferrule Stainless | Tube Fittings
$2.82
I-5-4-SF I-05-04-SF - 5/16" OD x 1/4" ID Tube Insert - Single Ferrule Stainless | Tube Fittings
$2.82
I-6-3-SF I-06-03-SF - 3/8" OD x 3/16" ID Tube Insert - Single Ferrule Stainless | Tube Fittings
$2.82
I-6-4-SF I-06-04-SF - 3/8" OD x 1/4" ID Tube Insert - Single Ferrule Stainless | Tube Fittings
$2.82
I-8-4-SF I-08-04-SF - 1/2" OD x 1/4" ID Tube Insert - Single Ferrule Stainless | Tube Fittings
$3.97
I-8-6-SF I-08-06-SF - 1/2" OD x 3/8" ID Tube Insert - Single Ferrule Stainless | Tube Fittings
$3.97
I-10-8-SF I-10-08-SF - 5/8" OD x 1/2" ID Tube Insert - Single Ferrule Stainless | Tube Fittings
$6.44
I-10-6-SF I-10-6-SF - 5/8" OD x 3/8" ID Tube Insert - Single Ferrule Stainless | Tube Fittings
$6.44
I-12-8-SF I-12-08-SF - 3/4" OD x 1/2" ID Tube Insert - Single Ferrule Stainless | Tube Fittings
$6.59
I-12-10-SF I-12-10-SF - 3/4" OD x 5/8" ID Tube Insert - Single Ferrule Stainless | Tube Fittings
$6.59
I-16-12-SF I-16-12-SF - 1" OD x 3/4" ID Tube Insert - Single Ferrule Stainless | Tube Fittings
$7.27
Check the items you wish to purchase, then click


Features:
Tube Fitting Material: 316 Stainless Steel



Product Details:
Pressure Ratings:
Tube O.D.
(inch)
TUBE WALL THICKNESS (inch)
0.010 0.012 0.014 0.016 0.020 0.028 0.035 0.049 0.065 0.083 0.095 0.109 0.120
1/16 5600 6800 8100 9400 12000
1/8 8500 10900
3/16 5400 7000 10200
1/4 4000 5100 7500 10200
5/16 4000 5800 8000
3/8 3300 4800 6500
1/2 2600 3700 5100 6700
5/8 2900 4000 5200 6000
3/4 2400 3300 4200 4900 5800
7/8 2000 2800 3600 4200 4800
1 2400 3100 3600 4200 4700
= Tubing working pressure (psi)

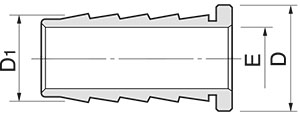

Dimensional Drawings:
FRACTIONAL
Tube O.D.Tube I.D.I.D. of Bore
(inch)(inch)(mm)
Part No.
I 3-23/161/82.28
I 4-21/41/82.28
I 4-31/43/163.55
I 5-25/161/82.28
I 5-35/163/163.04
I 5-45/161/44.82
I 6-33/83/163.04
I 6-43/81/44.82
I 8-41/21/44.82
I 8-61/23/87.87
I 10-65/83/87.87
I 10-85/81/211.17
I 12-83/41/211.17
I 12-103/45/814.22
I 16-1213/417.52
Competitor Cross Reference:
COMPETITOR PART NUMBER
ITEM #SWAGELOKSSP DUOLOKPARKER A-LOK
I 3-2SS-305-2ISSD3TI23TIZ(.125)-SS
I 4-2SS-405-2ISSD4TI24TIZ(.125)-SS
I 4-3SS-405-3ISSD4TI34TIZ(.188)-SS
I 5-2SS-505-2ISSD5TI25TIZ(.125)-SS
I 5-3SS-505-3ISSD5TI35TIZ(.188)-SS
I 5-4SS-505-4ISSD5TI45TIZ(.250)-SS
I 6-3SS-605-3ISSD6TI36TIZ(.188)-SS
I 6-4SS-605-4ISSD6TI46TIZ(.250)-SS
I 8-4SS-815-4ISSD8TI48TIZ(.250)-SS
I 8-6SS-815-6ISSD8TI68TIZ(.375)-SS
I 10-6SS-1015-6ISSD10TI610TIZ(.375)-SS
I 10-8SS-1015-8ISSD10TI810TIZ(.500)-SS
I 12-8SS-1215-8ISSD12TI812TIZ(.500)-SS
I 12-10SS-1215-10ISSD12TI1012TIZ(.625)-SS
I 16-12SS-1615-12ISSD16TI1216TIZ(.750)-SS
