CW - Male Pipe Weld Connector | Tube Fittings
CW Male Pipe Weld Connector  sold by Titanfittings.com


Stainless Tube Male Pipe Weld Connector


Material: 316 Stainless Steel
Bar Stock: ASTM A479, ASTM A276
Forging: ASTM B164
CW - Male Pipe Weld Connector

Item# Item Name Our Price Qty Add
CW-2-2P CW-02-02P - 1/8" Tube x 1/8" Male Pipe Weld Connector - Stainless Steel | Tube Fittings
$42.04
CW-3-2P CW-03-02P - 3/16" Tube x 1/8" Male Pipe Weld Connector - Stainless Steel | Tube Fittings
$26.47
CW-4-2P CW-04-02P - 1/4" Tube x 1/8" Male Pipe Weld Connector - Stainless Steel | Tube Fittings
$60.27
CW-4-4P CW-04-04P - 1/4" Tube x 1/4" Male Pipe Weld Connector - Stainless Steel | Tube Fittings
$75.64
CW-5-2P CW-05-02P - 5/16" Tube x 1/8" Male Pipe Weld Connector - Stainless Steel | Tube Fittings
$13.40
CW-5-4P CW-05-04P - 5/16" Tube x 1/4" Male Pipe Weld Connector - Stainless Steel | Tube Fittings
$34.64
CW-6-4P CW-06-04P - 3/8" Tube x 1/4" Male Pipe Weld Connector - Stainless Steel | Tube Fittings
$40.60
CW-6-6P CW-06-06P - 3/8" Tube x 3/8" Male Pipe Weld Connector - Stainless Steel | Tube Fittings
$116.28
CW-6-8P CW-06-08P - 3/8" Tube x 1/2" Male Pipe Weld Connector - Stainless Steel | Tube Fittings
$42.04
CW-8-6P CW-08-06P - 1/2" Tube x 3/8" Male Pipe Weld Connector - Stainless Steel | Tube Fittings
$350.88
CW-8-8P CW-08-08P - 1/2" Tube x 1/2"Male Pipe Weld Connector - Stainless Steel | Tube Fittings
$27.56
CW-8-12P CW-08-12P - 1/2" Tube x 3/4"Male Pipe Weld Connector - Stainless Steel | Tube Fittings
$206.23
CW-12-12P CW-12-12P - 3/4" Tube x 3/4" Male Pipe Weld Connector - Stainless Steel | Tube Fittings
$38.51
CW-16-16P CW-16-16P - 1" Tube x 1"Male Pipe Weld Connector - Stainless Steel | Tube Fittings
$74.27
Check the items you wish to purchase, then click


Features:
Material: 316 Stainless Steel



Product Details:
Pressure Ratings:
Tube O.D.
(inch)
TUBE WALL THICKNESS (inch)
0.010 0.012 0.014 0.016 0.020 0.028 0.035 0.049 0.065 0.083 0.095 0.109 0.120
1/16 5600 6800 8100 9400 12000
1/8 8500 10900
3/16 5400 7000 10200
1/4 4000 5100 7500 10200
5/16 4000 5800 8000
3/8 3300 4800 6500
1/2 2600 3700 5100 6700
5/8 2900 4000 5200 6000
3/4 2400 3300 4200 4900 5800
7/8 2000 2800 3600 4200 4800
1 2400 3100 3600 4200 4700
= Tubing working pressure (psi)

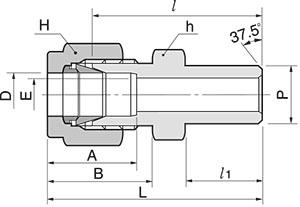

Dimensional Drawings:
CONNECTS FRACTIONAL TUBE TO PIPE
TubeMale Pipe Sized
O.D.PMinWidth Across Flat
Part No.D (inch)Nom.O.D.h (inch)H (inch)ABII1L
CW 2-2P1/81/810.32.287/167/1612.715.2423.879.6530.48
CW 3-2P3/161/810.33.047/161/213.711624.639.6531.24
CW 4-2P1/41/810.34.821/29/1615.2417.7825.49.6532.76
CW 4-4P1/41/413.74.829/169/1615.2417.7830.4814.2237.84
CW 5-2P5/161/810.35.089/165/816.2518.5426.679.6534.03
CW 5-4P5/161/413.76.359/165/816.2518.5431.2414.2238.6
CW 6-4P3/81/413.77.115/811/1616.7619.332.5114.2239.87
CW 6-6P3/83/817.17.1111/1611/1616.7619.332.5114.2239.87
CW 6-8P3/81/221.37.117/811/1616.7619.338.8619.0546.22
CW 8-6P1/23/817.110.4113/167/822.8621.8433.2714.2243.43
CW 8-8P1/21/221.310.417/87/822.8621.8438.8619.0549.02
CW 8-12P1/23/826.6710.411-1/167/822.8621.8440.3819.0550.54
CW 10-8P5/81/221.312.715/16124.3821.8438.8619.0549.02
CW 12-12P3/43/426.6715.741-1/161-1/824.3821.8440.3819.0550.54
CW 16-16P1133.422.351-3/81-1/231.2426.4150.0323.8762.23
Competitor Cross Reference:
COMPETITOR PART NUMBER
ITEM #SWAGELOKSSP DUOLOKPARKER A-LOK
CW 2-2PSS-200-1-2WISSD2MCW22-1/8ZHLW2-SS
CW 3-2PSS-300-1-2WISSD3MCW23-1/8ZHLW2-SS
CW 4-2PSS-400-1-2WISSD4MCW24-1/8ZHLW2-SS
CW 4-4PSS-400-1-4WISSD4MCW44-1/4ZHLW4-SS
CW 5-2PSS-500-1-2WISSD5MCW25-1/8ZHLW2-SS
CW 5-4PSS-500-1-4WISSD5MCW45-1/4ZHLW4-SS
CW 6-4PSS-600-1-4WISSD6MCW46-1/4ZHLW4-SS
CW 6-6PSS-600-1-6WISSD6MCW66-3/8ZHLW6-SS
CW 6-8PSS-600-1-8WISSD6MCW86-1/2ZHLW8-SS
CW 8-6PSS-810-1-6WISSD8MCW68-3/8ZHLW6-SS
CW 8-8PSS-810-1-8WISSD8MCW88-1/2ZHLW8-SS
CW 8-12PSS-810-1-12WISSD8MCW128-3/4ZHLW12-SS
CW 10-8PSS-1010-1-8WISSD10MCW810-1/2ZHLW8-SS
CW 12-12PSS-1210-1-12WISSD12MCW1212-3/4ZHLW12-SS
CW 16-16PSS-1610-1-16WISSD16MCW1616-1ZHLW16-SS
