TBF-SF - NPT Female Branch Tee | Tube Fittings
TBF-SF NPT Branch Tee SF  sold by Titanfittings.com


Stainless Tube Fitting Female Pipe NPT Branch Tee


Material: 316 Stainless Steel
Bar Stock: ASTM A479, ASTM A276
Forging: ASTM B164
TBF-SF - Female NPT Branch Tee

Item# Item Name Our Price Qty Add
TBF-2-2N-SF TBF-02-02N-SF - 1/8" Tube x 1/8" Female NPT Branch Tee - Single Ferrule Stainless | Tube Fittings
$27.06
TBF-4-2N-SF TBF-04-02N-SF - 1/4" Tube x 1/8" Female NPT Branch Tee - Single Ferrule Stainless | Tube Fittings
$25.75
TBF-4-4N-SF TBF-04-04N-SF - 1/4" Tube x 1/4" Female NPT Branch Tee - Single Ferrule Stainless | Tube Fittings
$25.75
TBF-6-4N-SF TBF-06-04N-SF - 3/8" Tube x 1/4" Female NPT Branch Tee - Single Ferrule Stainless | Tube Fittings
$26.47
TBF-6-6N-SF TBF-06-06N-SF - 3/8" Tube x 3/8" Female NPT Branch Tee - Single Ferrule Stainless | Tube Fittings
$32.20
TBF-6-8N-SF TBF-06-08N-SF - 3/8" Tube x 1/2" Female NPT Branch Tee - Single Ferrule Stainless | Tube Fittings
$39.57
TBF-8-4N-SF TBF-08-04N-SF - 1/2" Tube x 1/4" Female NPT Branch Tee - Single Ferrule Stainless | Tube Fittings
$36.51
TBF-8-6N-SF TBF-08-06N-SF - 1/2" Tube x 3/8" Female NPT Branch Tee - Single Ferrule Stainless | Tube Fittings
$36.51
TBF-8-8N-SF TBF-08-08N-SF - 1/2" Tube x 1/2" Female NPT Branch Tee - Single Ferrule Stainless | Tube Fittings
$39.71
TBF-10-8N-SF TBF-10-8N-SF - 5/8" Tube x 1/2" Female NPT Branch Tee - Single Ferrule Stainless | Tube Fittings
$44.69
TBF-12-12N-SF TBF-12-12N-SF - 3/4" Tube x 3/4" Female NPT Branch Tee - Single Ferrule Stainless | Tube Fittings
$68.23
TBF-16-12N-SF TBF-16-12N-SF - 1" Tube x 3/4" Female NPT Branch Tee - Single Ferrule Stainless | Tube Fittings
$103.69
TBF-16-16N-SF TBF-16-16N-SF - 1" Tube x 1" Female NPT Branch Tee - Single Ferrule Stainless | Tube Fittings
$116.52
Check the items you wish to purchase, then click


Features:
Tube Fitting Material: 316 Stainless Steel



Product Details:
Pressure Ratings:
Tube O.D.
(inch)
TUBE WALL THICKNESS (inch)
0.010 0.012 0.014 0.016 0.020 0.028 0.035 0.049 0.065 0.083 0.095 0.109 0.120
1/16 5600 6800 8100 9400 12000
1/8 8500 10900
3/16 5400 7000 10200
1/4 4000 5100 7500 10200
5/16 4000 5800 8000
3/8 3300 4800 6500
1/2 2600 3700 5100 6700
5/8 2900 4000 5200 6000
3/4 2400 3300 4200 4900 5800
7/8 2000 2800 3600 4200 4800
1 2400 3100 3600 4200 4700
= Tubing working pressure (psi)

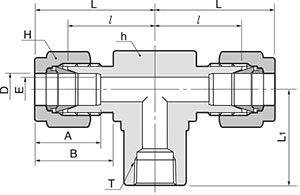

Dimensional Drawings:
CONNECTS FRACTIONAL TUBE TO FEMALE NPT THREAD
Tube O.D.T*dWidth Across Flat
Part No.D (inch)(NPT)Minh (inch)H (inch)ABILL1
TBF 2-2N1/81/82.281/27/1612.715.2418.0324.6319.05
TBF 4-2N1/41/84.821/29/1615.2417.7819.5526.9219.05
TBF 4-4N1/41/44.8211/169/1615.2417.7822.3529.7122.35
TBF 6-4N3/81/47.1111/1611/1616.7619.323.8731.2422.35
TBF 6-6N3/83/87.1113/1611/1616.7619.325.933.2722.35
TBF 6-8N3/81/27.11111/1616.7619.328.736.0728.45
TBF 8-4N1/21/410.4113/167/822.8621.8425.936.0622.35
TBF 8-6N1/23/810.4113/167/822.8621.8425.936.0622.35
TBF 8-8N1/21/210.4117/822.8621.8428.738.8628.44
TBF 10-8N5/81/212.71124.3821.8428.738.8628.44
TBF 12-12N3/43/415.741-3/81-1/824.3821.8434.5444.731.75
TBF 16-12N13/422.351-3/81-1/231.2426.4136.8349.0231.75
TBF 16-16N1122.351-11/161-1/231.2426.4141.453.5938.1
Competitor Cross Reference:
COMPETITOR PART NUMBER
ITEM #SWAGELOKSSP DUOLOKPARKER A-LOK
TBF 2-2NSS-200-3TTFISSD2TBF22TBF2N-SS
TBF 4-2NSS-400-3TTFISSD4TBF24TBF2N-SS
TBF 4-4NSS-400-3-4TTFISSD4TBF44TBF4N-SS
TBF 6-4NSS-600-3TTFISSD6TBF46TBF4N-SS
TBF 6-6NSS-600-3-6TTFISSD6TBF66TBF6N-SS
TBF 6-8NSS-600-3-8TTFISSD6TBF86TBF8N-SS
TBF 8-4NSS-810-3-4TTFISSD8TBF48TBF4N-SS
TBF 8-6NSS-810-3TTFISSD8TBF68TBF6N-SS
TBF 8-8NSS-810-3-8TTFISSD8TBF88TBF8N-SS
TBF 10-8NSS-1010-3TTFISSD10TBF810TBF8N-SS
TBF 12-12NSS-1210-3TTFISSD12TBF1212TBF12N-SS
TBF 16-12NSS-1610-3-12TTFISSD16TBF1216TBF12N-SS
TBF 16-16NSS-1610-3TTFISSD16TBF1616TBF16N-SS
