Home
>
Fittings & Adapters
>
Stainless Adapters
>
Oring Boss SAE/ORB
>
SS-6408
Alternative Views:
SAE O-Ring Boss ORB to Head Plug (Stainless)
Material:
316 Stainless Steel
Standards:
ASME B1.20.1, SAE AS71051
Comparable:
AEROQUIP 900598, PARKER P5ON-SS, SSP GP, SAE 090109A
Print Page
SAE O-Ring Boss ORB to Head Plug
Item#
Item Name
Our Price
Qty
Add
SS-6408-02
SS-6408-02 | 1/8" ORB (5/16"-24 thread) Male Hex Head Plug - Stainless Steel
$4.33
SS-6408-03
SS-6408-03 | 3/16" ORB (3/8"-24 thread) Male Hex Head Plug - Stainless Steel
$5.49
SS-6408-04
SS-6408-04 | 1/4" ORB (7/16-20 thread) Male Hex Head Plug - Stainless Steel
$5.67
SS-6408-05
SS-6408-05 | 5/16" ORB (1/2"-20 thread) Male Hex Head Plug - Stainless Steel
$10.64
SS-6408-06
SS-6408-06 | 3/8" ORB (9/16"-18 thread) Male Hex Head Plug - Stainless Steel
$9.62
SS-6408-08
SS-6408-08 | 1/2" ORB (3/4"-16 thread) Male Hex Head Plug - Stainless Steel
$10.48
SS-6408-10
SS-6408-10 | 5/8" ORB (7/8"-14 thread) Male Hex Head Plug - Stainless Steel
$22.82
SS-6408-12
SS-6408-12 | 3/4" ORB (1 1/16"-12 thread) Male Hex Head Plug - Stainless Steel
$24.07
SS-6408-16
SS-6408-16 | 1" ORB (1 5/16"-12 thread) Male Hex Head Plug - Stainless Steel
$33.70
SS-6408-20
SS-6408-20 | 1 1/4" ORB (1-5/8"-12 thread) Male Hex Head Plug - Stainless Steel
$77.18
SS-6408-24
SS-6408-24 | 1 1/2" ORB (1-7/8"-12 thread) Male Hex Head Plug - Stainless Steel
$101.11
SS-6408-32
SS-6408-32 | 2" ORB (2 1/2"-12 thread) Male Hex Head Plug - Stainless Steel
$99.86
Check the items you wish to purchase, then click
Features:
SAE O-Ring Boss ORB to Head Plug (Stainless)
Material: 316 Stainless Steel
Standards: ASME B1.20.1, SAE AS71051
Intercomparable: AEROQUIP 900598, PARKER P5ON-SS, SSP GP, SAE 090109A
Product Details:
Pressure Ratings:
SAE J514 Pressure Ratings
Nom. SAE Dash Size
Nom. Tube O.D. Inches
37 Degree Flare Straight Thread
Nom. Pipe Size
SAE St. Threads Union & Bulkhead (PSI)
Fittings With Pipe Threads (PSI)
2
1/8
5/16"-24
1/8"
7500
5000
3
3/16
3/8"-24
1/8"
7500
5000
4
1/4
7/16"-20
1/8"
7500
5000
5
5/16
1/2"-20
1/8"
6000
5000
6
3/8
9/16"-18
1/4"
6000
5000
8
1/2
3/4"-16
3/8"
6000
4000
10
5/8
7/8"-14
1/2"
6000
3000
12
3/4
1 1/16"-12
3/4"
6000
3000
14
7/8
1 3/16"-12
3/4"
5500
2500
16
1
1 5/16"-12
1"
5500
2000
20
1 1/4
1 5/8"-12
1 1/4"
4000
1150
24
1 1/2
1 7/8"-12
1 1/2"
3000
1000
32
2
2 1/2"-12
2"
2000
1000
NOTE: Since many factors influence the pressure at which a system will or will not perform satisfactory, values shown in this table should not be construed as guaranteed minimum.

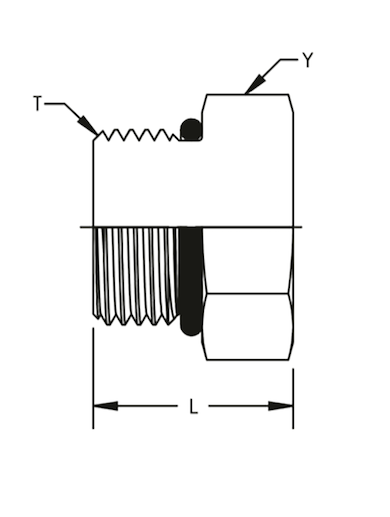

Dimensional Drawings:
Product ID
Y HEX
T
L
SS-6408-02
0.438
5/16-24
0.6
SS-6408-03
0.5
3/8-24
0.6
SS-6408-04
0.563
7/16-20
0.67
SS-6408-05
0.625
1/2-20
0.67
SS-6408-06
0.688
9/16-18
0.73
SS-6408-08
0.875
3/4-16
0.8
SS-6408-10
1
7/8-14
0.93
SS-6408-12
1.25
1-1/16-12
1.09
SS-6408-14
1.375
1-3/16-12
1.09
SS-6408-16
1.5
1-5/16-12
1.12
SS-6408-20
1.875
1-5/8-12
1.2
SS-6408-24
2.125
1-7/8-12
1.27
SS-6408-32
2.75
2-1/2-12
1.43
Competitor Cross Reference:
INTERCHANGEABLE WITH:
ITEM #
AEROQUIP
PARKER
SSP
SAE
6408-02
259-900598-2
2 P5ON-SS
2GP
090109A
6408-03
259-900598-3
3 P5ON-SS
3GP
090109A
6408-04
259-900598-4
4 P5ON-SS
4GP
090109A
6408-05
259-900598-5
5 P5ON-SS
5GP
090109A
6408-06
259-900598-6
6 P5ON-SS
6GP
090109A
6408-08
259-900598-8
8 P5ON-SS
8GP
090109A
6408-10
259-900598-10
10 P5ON-SS
10GP
090109A
6408-12
259-900598-12
12 P5ON-SS
12GP
090109A
6408-14
259-900598-14
14 P5ON-SS
14GP
090109A
6408-16
259-900598-16
16 P5ON-SS
16GP
090109A
6408-20
259-900598-20
20 P5ON-SS
20GP
090109A
6408-24
259-900598-24
24 P5ON-SS
24GP
090109A
6408-32
259-900598-32
32 P5ON-SS
32GP
090109A
