L - Union Elbow | Tube Fittings
L Union Elbow  sold by Titanfittings.com


Stainless Tube Union Elbow


Material: 316 Stainless Steel
Bar Stock: ASTM A479, ASTM A276
Forging: ASTM B164
L - Union Elbow

Item# Item Name Our Price Qty Add
L-1 L-01- 1/16" Tube Union 90 Elbow - Stainless Steel | Tube Fittings
$29.21
L-2 L-02- 1/8" Tube Union 90 Elbow - Stainless Steel | Tube Fittings
$17.60
L-3 L-03- 3/16" Tube Union 90 Elbow - Stainless Steel | Tube Fittings
$17.03
L-4 L-04- 1/4" Tube Union 90 Elbow - Stainless Steel | Tube Fittings
$17.16
L-5 L-05- 5/16" Tube Union 90 Elbow - Stainless Steel | Tube Fittings
$17.97
L-6 L-06- 3/8" Tube Union 90 Elbow - Stainless Steel | Tube Fittings
$19.18
L-8 L-08- 1/2" Tube Union 90 Elbow - Stainless Steel | Tube Fittings
$29.21
L-10 L-10 - 5/8" Tube Union 90 Elbow - Stainless Steel | Tube Fittings
$35.87
L-12 L-12 - 3/4" Tube Union 90 Elbow - Stainless Steel | Tube Fittings
$47.83
L-14 L-14 - 7/8" Tube Union 90 Elbow - Stainless Steel | Tube Fittings
$73.30
L-16 L-16 - 1" Tube Union 90 Elbow - Stainless Steel | Tube Fittings
$94.00
L-20 L-20 - 1 1/4" Tube Union 90 Elbow - Stainless Steel | Tube Fittings
$211.66
L-24 L-24 - 1 1/2" Tube Union 90 Elbow - Stainless Steel | Tube Fittings
$305.73
L-32 L-32 - 2" Tube Union 90 Elbow - Stainless Steel | Tube Fittings
$685.92
Check the items you wish to purchase, then click


Features:
Material: 316 Stainless Steel



Product Details:
Pressure Ratings:
Tube O.D.
(inch)
TUBE WALL THICKNESS (inch)
0.010 0.012 0.014 0.016 0.020 0.028 0.035 0.049 0.065 0.083 0.095 0.109 0.120
1/16 5600 6800 8100 9400 12000
1/8 8500 10900
3/16 5400 7000 10200
1/4 4000 5100 7500 10200
5/16 4000 5800 8000
3/8 3300 4800 6500
1/2 2600 3700 5100 6700
5/8 2900 4000 5200 6000
3/4 2400 3300 4200 4900 5800
7/8 2000 2800 3600 4200 4800
1 2400 3100 3600 4200 4700
= Tubing working pressure (psi)

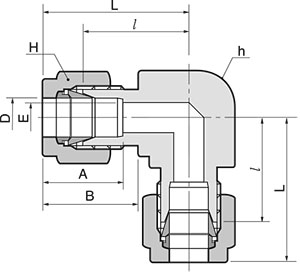

Dimensional Drawings:
CONNECTS WITH FRACTIONAL TUBE
Tube O.D.dWidth Across Flat
Part No.D (inch)Minh (inch)H (inch)ABIL
L-11/161.273/85/168.6310.921418.03
L-21/82.283/87/1612.715.2415.7422.35
L-33/163.041/21/213.711618.5425.14
L-41/44.821/29/1615.2417.7820.127.4
L-55/166.355/85/816.2518.5422.3529.71
L-63/87.115/811/1616.7619.323.1130.48
L-81/210.4113/167/822.8621.8425.936.06
L-105/812.715/16124.3821.8427.9438.1
L-123/415.741-1/161-1/824.3821.8429.7139.87
L-147/818.281-3/81-1/425.921.8434.5444.7
L-16122.351-3/81-1/231.2426.4136.8349.02
L-201-1/427.691-11/161-7/841.1538.8644.4566.55
L-241-1/234.0422-1/450.0445.2150.877.98
L-32245.972-3/4367.5662.7469.85107.19
Competitor Cross Reference:
COMPETITOR PART NUMBER
ITEM #SWAGELOKSSP DUOLOKPARKER A-LOK
L-1SS-100-9ISSD1L1EE1-SS
L-2SS-200-9ISSD2L1EE2-SS
L-3SS-300-9ISSD3L1EE3-SS
L-4SS-400-9ISSD4L1EE4-SS
L-5SS-500-9ISSD5L1EE5-SS
L-6SS-600-9ISSD6L1EE6-SS
L-8SS-810-9ISSD8L1EE8-SS
L-10SS-1010-9ISSD10L1EE10-SS
L-12SS-1210-9ISSD12L1EE12-SS
L-14SS-1410-9ISSD14L1EE14-SS
L-16SS-1610-9ISSD16L1EE16-SS
L-20SS-2000-9ISSD20L1EE20-SS
L-24SS-2400-9ISSD24L1EE24-SS
L-32SS-3200-9ISSD32L1EE32-SS
