RU-SF - Reducing Union | Tube Fittings
RU-SF Reducing Union SF  sold by Titanfittings.com


Stainless Tube Fitting Reducing Union


Material: 316 Stainless Steel
Bar Stock: ASTM A479, ASTM A276
Forging: ASTM B164
RU-SF - Reducing Union

Item# Item Name Our Price Qty Add
RU-2-1-SF RU-02-01-SF - 1/8" x 1/16" Tube Reducing Union - Single Ferrule Stainless | Tube Fittings
$16.07
RU-3-2-SF RU-03-02-SF- 3/16" x 1/8" Tube Reducing Union - Single Ferrule Stainless | Tube Fittings
$16.07
RU-4-2-SF RU-04-02-SF - 1/4" x 1/8" Tube Reducing Union - Single Ferrule Stainless | Tube Fittings
$12.93
RU-4-3-SF RU-04-03-SF- 1/4" x 3/16" Tube Reducing Union - Single Ferrule Stainless | Tube Fittings
$13.22
RU-5-2-SF RU-05-02-SF - 5/16" x 1/8" Tube Reducing Union - Single Ferrule Stainless | Tube Fittings
$13.57
RU-5-4-SF RU-05-04-SF - 5/16" x 1/4" Tube Reducing Union - Single Ferrule Stainless | Tube Fittings
$13.28
RU-6-2-SF RU-06-02-SF- 3/8" x 1/8" Tube Reducing Union - Single Ferrule Stainless | Tube Fittings
$16.07
RU-6-4-SF RU-06-04-SF- 3/8" x 1/4" Tube Reducing Union - Single Ferrule Stainless | Tube Fittings
$15.70
RU-6-5-SF RU-06-05-SF - 3/8" x 5/16" Tube Reducing Union - Single Ferrule Stainless | Tube Fittings
$15.70
RU-8-2-SF RU-08-02-SF - 1/2" x 1/8" Tube Reducing Union - Single Ferrule Stainless | Tube Fittings
$25.30
RU-8-4-SF RU-08-04-SF- 1/2" x 1/4" Tube Reducing Union - Single Ferrule Stainless | Tube Fittings
$24.59
RU-8-6-SF RU-08-06-SF - 1/2" x 3/8" Tube Reducing Union - Single Ferrule Stainless | Tube Fittings
$24.59
RU-10-6-SF RU-10-06-SF - 5/8" x 3/8" Tube Reducing Union - Single Ferrule Stainless | Tube Fittings
$30.84
RU-10-8-SF RU-10-08-SF- 5/8" x 1/2" Tube Reducing Union - Single Ferrule Stainless | Tube Fittings
$30.84
RU-12-4-SF RU-12-04-SF- 3/4" x 1/4" Tube Reducing Union - Single Ferrule Stainless | Tube Fittings
$39.25
RU-12-6-SF RU-12-06-SF - 3/4" x 3/8" Tube Reducing Union - Single Ferrule Stainless | Tube Fittings
$39.25
RU-12-8-SF RU-12-08-SF - 3/4" x 1/2" Tube Reducing Union - Single Ferrule Stainless | Tube Fittings
$38.83
RU-12-10-SF RU-12-10-SF - 3/4" x 5/8" Tube Reducing Union - Single Ferrule Stainless | Tube Fittings
$38.83
RU-16-8-SF RU-16-08-SF- 1" x 1/2" Tube Reducing Union - Single Ferrule Stainless | Tube Fittings
$66.05
RU-16-12-SF RU-16-12-SF - 1" x 3/4" Tube Reducing Union - Single Ferrule Stainless | Tube Fittings
$66.05
Check the items you wish to purchase, then click


Features:
Tube Fitting Material: 316 Stainless Steel



Product Details:
Pressure Ratings:
Tube O.D.
(inch)
TUBE WALL THICKNESS (inch)
0.010 0.012 0.014 0.016 0.020 0.028 0.035 0.049 0.065 0.083 0.095 0.109 0.120
1/16 5600 6800 8100 9400 12000
1/8 8500 10900
3/16 5400 7000 10200
1/4 4000 5100 7500 10200
5/16 4000 5800 8000
3/8 3300 4800 6500
1/2 2600 3700 5100 6700
5/8 2900 4000 5200 6000
3/4 2400 3300 4200 4900 5800
7/8 2000 2800 3600 4200 4800
1 2400 3100 3600 4200 4700
= Tubing working pressure (psi)

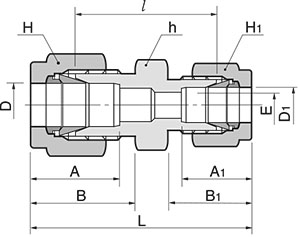

Dimensional Drawings:
CONNECTS WITH FRACTIONAL TUBE
Part No. Tube O.D. d Width Across Flat
D (inch) D1 (inch) Min h (inch) H (inch) H1 (inch) A A1 B B1 I L
RU 2-1 1/8 1/16 1.27 7/16 7/16 5/16 12.7 8.63 15.24 10.92 20.6 31
RU 3-2 3/16 1/8 2.28 7/16 1/2 7/16 13.71 12.7 16 15.24 23.36 36.57
RU 4-2 1/4 1/8 2.28 1/2 9/16 7/16 15.24 12.7 17.78 15.24 24.63 38.6
RU 4-3 1/4 3/16 3.04 1/2 9/16 1/2 15.24 13.71 17.78 16 25.4 39.37
RU 5-2 5/16 1/8 2.28 9/16 5/8 7/16 16.25 12.7 18.54 15.24 25.9 39.87
RU 5-4 5/16 1/4 4.82 9/16 5/8 9/16 16.25 15.24 18.54 17.78 27.43 42.16
RU 6-2 3/8 1/8 2.28 5/8 11/16 7/16 16.76 12.7 19.3 15.24 26.92 40.89
RU 6-4 3/8 1/4 4.82 5/8 11/16 9/16 16.76 15.24 19.3 17.78 28.44 43.18
RU 6-5 3/8 5/16 6.35 5/8 11/16 5/8 16.76 16.25 19.3 18.54 29.46 44.19
RU 8-2 1/2 1/8 2.28 1/316 7/8 7/16 22.86 12.7 21.84 15.24 28.44 45.21
RU 8-4 1/2 1/4 4.82 13/16 7/8 9/16 22.86 15.24 21.84 17.78 29.46 46.99
RU 8-6 1/2 3/8 7.11 13/16 7/8 11/16 22.86 16.76 21.84 19.3 30.98 48.51
RU 10-6 5/8 3/8 7.11 15/16 1 11/16 24.38 16.76 21.84 19.3 31.75 49.27
RU 10-8 5/8 1/2 10.41 15/16 1 7/8 24.38 22.86 21.84 21.84 31.75 52.07
RU 12-4 3/4 1/4 4.82 1-1/16 1-1/8 9/16 24.38 15.24 21.84 17.78 31.75 49.27
RU 12-6 3/4 3/8 7.11 1-1/16 1-1/8 11/16 24.38 16.76 21.84 19.3 33.27 50.8
RU 12-8 3/4 1/2 10.41 1-1/16 1-1/8 7/8 24.38 22.86 21.84 21.84 33.27 53.59
RU 12-10 3/4 5/8 12.7 1-1/16 1-1/8 1 24.38 24.38 21.84 21.84 33.27 53.59
RU 16-8 1 1/2 10.41 1-3/8 1-1/2 7/8 31.24 22.86 26.41 21.84 39.5 63.24
RU 16-12 1 3/4 15.74 1-3/8 1-1/2 1-1/8 31.24 24.38 26.41 21.84 39 62.73
Competitor Cross Reference:
Competitor Part Number
ITEM # SWAGELOK SSP DUOLOK PARKER A-LOK
RU 2-1 SS-200-6-1 ISSD2RU1 2RU1-SS
RU 3-2 SS-300-6-2 ISSD3RU2 3RU2-SS
RU 4-2 SS-400-6-2 ISSD4RU2 4RU2-SS
RU 4-3 SS-400-6-3 ISSD4RU3 4RU3-SS
RU 5-2 SS-500-6-2 ISSD5RU2 5RU2-SS
RU 5-4 SS-500-6-4 ISSD5RU4 5RU4-SS
RU 6-2 SS-600-6-2 ISSD6RU2 6RU2-SS
RU 6-4 SS-600-6-4 ISSD6RU4 6RU4-SS
RU 6-5 SS-600-6-5 ISSD6RU5 6RU5-SS
RU 8-2 SS-810-6-2 ISSD8RU2 8RU2-SS
RU 8-4 SS-810-6-4 ISSD8RU4 8RU4-SS
RU 8-6 SS-810-6-6 ISSD8RU6 8RU6-SS
RU 10-6 SS-1010-6-6 ISSD10RU6 10RU6-SS
RU 10-8 SS-1010-6-8 ISSD10RU8 10RU8-SS
RU 12-4 SS-1210-6-4 ISSD12RU4 12RU4-SS
RU 12-6 SS-1210-6-6 ISSD12RU6 12RU6-SS
RU 12-8 SS-1210-6-8 ISSD12RU8 12RU8-SS
RU 12-10 SS-1210-6-10 ISSD12RU10 12RU10-SS
RU 16-8 SS-1610-6-8 ISSD16RU8 16RU8-SS
RU 16-12 SS-1610-6-12 ISSD16RU12 16RU12-SS
