SAE O-Ring Boss ORB Male to NPT Pipe Male Adapter (Stainless)


Material: 316 Stainless Steel
Standards: ASME B1.20.1, SAE AS71051
Comparable: PARKER F5OF-SS, SSP GCM
SAE O-Ring Boss ORB Male to NPT Pipe Male Adapter

Item# Item Name Our Price Qty Add
SS-6401-02-04 SS-6401-02-04 | 1/8" ORB (5/16"-24 thread) Male x 1/4" Male Pipe - Stainless Steel
$14.17
SS-6401-03-02 SS-6401-03-02 | 3/16" ORB (3/8"-24 thread) Male x 1/8" Male Pipe - Stainless Steel
$18.78
SS-6401-04-02 SS-6401-04-02 | 1/4" ORB (1-5/8"-12 thread) Male x 1/8" Male Pipe - Stainless Steel
$29.92
SS-6401-04-04 SS-6401-04-04 | 1/4" ORB (1-5/8"-12 thread) Male x 1/4" Male Pipe - Stainless Steel
$16.85
SS-6401-05-04 SS-6401-05-04 | 5/16" ORB (1/2"-20 thread) Male x 1/4" Male Pipe - Stainless Steel
$31.13
SS-6401-06-04 SS-6401-06-04 | 3/8" ORB (9/16"-18 thread) Male x 1/4" Male Pipe - Stainless Steel
$35.91
SS-6401-06-06 SS-6401-06-06 | 3/8" ORB (9/16"-18 thread) Male x 3/8" Male Pipe - Stainless Steel
$58.99
SS-6401-08-04 SS-6401-08-04 | 1/2" ORB (3/4"-16 thread) Male x 1/4" Male Pipe - Stainless Steel
$33.60
SS-6401-08-06 SS-6401-08-06 | 1/2" ORB (3/4"-16 thread) Male x 3/8" Male Pipe - Stainless Steel
$35.91
SS-6401-08-08 SS-6401-08-08 | 1/2" ORB (3/4"-16 thread) Male x 1/2" Male Pipe - Stainless Steel
$26.73
SS-6401-10-08 SS-6401-10-08 | 5/8" ORB (7/8"-14 thread) Male x 1/2" Male Pipe - Stainless Steel
$37.13
SS-6401-10-12 SS-6401-10-12 | 5/8" ORB (7/8"-14 thread) Male x 3/4" Male Pipe - Stainless Steel
$39.09
SS-6401-12-08 SS-6401-12-08 | 3/4" ORB (1 1/16"-12 thread) Male x 1/2" Male Pipe - Stainless Steel
$41.21
SS-6401-12-12 SS-6401-12-12 | 3/4" ORB (1 1/16"-12 thread) Male x 3/4" Male Pipe - Stainless Steel
$43.20
SS-6401-16-08 SS-6401-16-08 | 1" ORB (1 5/16"-12 thread) Male x 1/2" Male Pipe - Stainless Steel
$52.01
SS-6401-16-12 SS-6401-16-12 | 1" ORB (1 5/16"-12 thread) Male x 3/4" Male Pipe - Stainless Steel
$50.17
SS-6401-16-16 SS-6401-16-16 | 1" ORB (1 5/16"-12 thread) Male x 1" Male Pipe - Stainless Steel
$57.32
SS-6401-20-20 SS-6401-20-20 | 1 1/4" ORB (1-5/8"-12 thread) Male x 1 1/4" Male Pipe - Stainless Steel
$188.06
SS-6401-24-24 SS-6401-24-24 | 1 1/2" ORB (1-7/8"-12 thread) Male x 1 1/2" Male Pipe - Stainless Steel
$210.38
SS-6401-32-32 SS-6401-32-32 | 2" ORB (2 1/2"-12 thread) Male x 2" Male Pipe - Stainless Steel
$240.74
SS-6401-40-40 SS-6401-40-40 - 2-1/2" ORB (3/4"-16 thread) Male x 2-1/2" Male Pipe - Stainless Steel
$416.38
Check the items you wish to purchase, then click


Features:
SAE O-Ring Boss ORB Male to NPTF Pipe Male Adapter (Stainless)
Material: 316 Stainless Steel
Standards: ASME B1.20.1, SAE AS71051
Intercomparable: PARKER F5OF-SS, SSP GCM



Product Details:
Pressure Ratings:
SAE J514 Pressure Ratings
Nom. SAE Dash Size Nom. Tube O.D. Inches 37 Degree Flare Straight Thread Nom. Pipe Size SAE St. Threads Union & Bulkhead (PSI) Fittings With Pipe Threads (PSI)
2 1/8 5/16"-24 1/8" 5000 5000
3 3/16 3/8"-24 1/8" 5000 5000
4 1/4 7/16"-20 1/8" 5000 5000
5 5/16 1/2"-20 1/8" 5000 5000
6 3/8 9/16"-18 1/4" 5000 5000
8 1/2 3/4"-16 3/8" 4500 4000
10 5/8 7/8"-14 1/2" 3500 3000
12 3/4 1 1/16"-12 3/4" 3500 3000
14 7/8 1 3/16"-12 3/4" 3000 2500
16 1 1 5/16"-12 1" 3000 2000
20 1 1/4 1 5/8"-12 1 1/4" 2500 1150
24 1 1/2 1 7/8"-12 1 1/2" 2000 1000
32 2 2 1/2"-12 2" 1500 1000
NOTE: Since many factors influence the pressure at which a system will or will not perform satisfactory, values shown in this table should not be construed as guaranteed minimum.

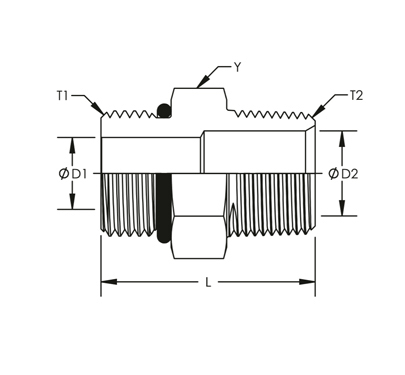

Dimensional Drawings:
Product ID Y HEX T1 D1 T2 D2 L
SS-6401-04-02 0.563 7/16-20 0.172 1/8-27 0.188 1.04
SS-6401-04-04 0.563 7/16-20 0.172 1/4-18 0.281 1.23
SS-6401-05-04 0.625 1/2-20 0.234 1/4-18 0.281 1.23
SS-6401-06-04 0.688 9/16-18 0.297 1/4-18 0.281 1.261
SS-6401-06-06 0.75 9/16-18 0.297 3/8-18 0.406 1.261
SS-6401-06-08 0.875 9/16-18 0.297 1/2-14 0.531 1.481
SS-6401-08-06 0.875 3/4-16 0.391 3/8-18 0.406 1.338
SS-6401-08-08 0.875 3/4-16 0.391 1/2-14 0.531 1.528
SS-6401-08-12 1.125 3/4-16 0.391 3/4-14 0.719 1.76
SS-6401-10-04 1 7/8-14 0.484 1/4-18 0.281 1.28
SS-6401-10-06 1 7/8-14 0.484 3/8-18 0.406 1.46
SS-6401-10-08 1 7/8-14 0.484 1/2-14 0.531 1.65
SS-6401-10-12 1.125 7/8-14 0.484 3/4-14 0.719 1.65
SS-6401-12-06 1.25 1-1/16-12 0.609 3/8-18 0.406 1.624
SS-6401-12-08 1.25 1-1/16-12 0.609 1/2-14 0.531 1.814
SS-6401-12-12 1.25 1-1/16-12 0.609 3/4-14 0.719 1.814
SS-6401-16-12 1.5 1-5/16-12 0.844 3/4-14 0.719 1.844
SS-6401-16-16 1.5 1-5/16-12 0.844 1-11-1/2 0.938 2.05
SS-6401-20-20 1.875 1-5/8-12 1.078 1-1/4-11-1/2 1.25 2.144
SS-6401-24-24 2 1-7/8-12 1.313 1-1/2-11-1/2 1.5 2.244
SS-6401-32-32 2.75 2-1/2-12 1.781 2-11-1/2 1.938 2.434
Competitor Cross Reference:
INTERCHANGEABLE WITH:
SHF PARKER SSP
6401-04-02 4-1/8 F5OF-SS 4X1/8GCM
6401-04-04 4-1/4 F5OF-SS 4X1/4GCM
6401-05-04 5-1/4 F5OF-SS 5X1/4GCM
6401-06-04 6-1/4 F5OF-SS 6X1/4GCM
6401-06-06 6-3/8 F5OF-SS 6X3/8GCM
6401-08-04 8-1/4 F5OF-SS 8X1/4GCM
6401-08-06 8-3/8 F5OF-SS 8X3/8GCM
6401-08-08 8-1/2 F5OF-SS 8X1/2GCM
6401-10-08 10-1/2 F5OF-SS 10X1/2GCM
6401-10-12 10-3/4 F5OF-SS 10X3/4GCM
6401-12-08 12-1/2 F5OF-SS 12X1/2GCM
6401-12-12 12-3/4 F5OF-SS 12X3/4GCM
6401-16-08 16-1/2 F5OF-SS 16X1/2GCM
6401-16-12 16-3/4 F5OF-SS 16X3/4GCM
6401-16-16 16-1 F5OF-SS 16X1GCM
6401-20-20 20-1 1/4 F5OF-SS 20X1-1/4GCM
6401-24-24 24-1 1/2 F5OF-SS 24X1-1/2GCM
6401-32-32 32-2 F5OF-SS 32X2GCM
