SS-6405
6405 Steel

Alternative Views:


SAE O-Ring Boss ORB Male to NPT Pipe Female Adapter (Stainless)


Material: 316 Stainless Steel
Standards: ASME B1.20.1, SAE AS71051
Comparable: AEROQUIP 2216, PARKER F5OG-SS, SSP GCF
SAE O-Ring Boss ORB Male to NPT Pipe Female Adapter

Item# Item Name Our Price Qty Add
SS-6405-02-02 SS-6405-02-02 | 1/8" ORB (5/16"-24 thread) Male x 1/8" Female Pipe - Stainless Steel
$31.87
SS-6405-04-02 SS-6405-04-02 | 1/4" ORB (1-5/8"-12 thread) Male x 1/8" Female Pipe - Stainless Steel
$31.55
SS-6405-04-04 SS-6405-04-04 | 1/4" ORB (1-5/8"-12 thread) Male x 1/4" Female Pipe - Stainless Steel
$31.29
SS-6405-05-04 SS-6405-05-04 | 5/16" ORB (1/2"-20 thread) Male x 1/4" Female Pipe - Stainless Steel
$30.30
SS-6405-06-04 SS-6405-06-04 | 3/8" ORB (9/16"-18 thread) Male x 1/4" Female Pipe - Stainless Steel
$24.07
SS-6405-06-06 SS-6405-06-06 | 3/8" ORB (9/16"-18 thread) Male x 3/8" Female Pipe - Stainless Steel
$40.86
SS-6405-06-08 SS-6405-06-08 | 3/8" ORB (9/16"-18 thread) Male x 1/2" Female Pipe - Stainless Steel
$41.02
SS-6405-08-02 SS-6405-08-02 | 1/2" ORB (3/4"-16 thread) Male x 1/8" Female Pipe - Stainless Steel
$75.11
SS-6405-08-04 SS-6405-08-04 | 1/2" ORB (3/4"-16 thread) Male x 1/4" Female Pipe - Stainless Steel
$38.51
SS-6405-08-06 SS-6405-08-06 | 1/2" ORB (3/4"-16 thread) Male x 3/8" Female Pipe - Stainless Steel
$36.11
SS-6405-08-08 SS-6405-08-08 | 1/2" ORB (3/4"-16 thread) Male x 1/2" Female Pipe - Stainless Steel
$55.37
SS-6405-08-12 SS-6405-08-12 - 1/2" ORB (3/4"-16 thread) Male x 3/4" Female Pipe - Stainless Steel
$62.59
SS-6405-10-04 SS-6405-10-04 | 5/8" ORB (7/8"-14 thread) Male x 1/4" Female Pipe - Stainless Steel
$35.04
SS-6405-10-06 SS-6405-10-06 | 5/8" ORB (7/8"-14 thread) Male x 3/8" Female Pipe - Stainless Steel
$37.10
SS-6405-10-08 SS-6405-10-08 | 5/8" ORB (7/8"-14 thread) Male x 1/2" Female Pipe - Stainless Steel
$63.09
SS-6405-10-12 SS-6405-10-12 | 5/8" ORB (7/8"-14 thread) Male x 3/4" Female Pipe - Stainless Steel
$55.08
SS-6405-12-04 SS-6405-12-04 | 3/4" ORB (1 1/16"-12 thread) Male x 1/4" Female Pipe - Stainless Steel
$40.02
SS-6405-12-06 SS-6405-12-06 | 3/4" ORB (1 1/16"-12 thread) Male x 3/8" Female Pipe - Stainless Steel
$38.04
SS-6405-12-08 SS-6405-12-08 | 3/4" ORB (1 1/16"-12 thread) Male x 1/2" Female Pipe - Stainless Steel
$44.89
SS-6405-12-12 SS-6405-12-12 | 3/4" ORB (1 1/16"-12 thread) Male x 3/4" Female Pipe - Stainless Steel
$48.14
SS-6405-14-08 SS-6405-14-08 - 7/8" ORB (1 3/16"-12 thread) Male x 1/2" Female Pipe - Stainless Steel
$83.39
SS-6405-14-12 SS-6405-14-12 - 7/8" ORB (1 3/16"-12 thread) Male x 3/5" Female Pipe - Stainless Steel
$84.15
SS-6405-16-08 SS-6405-16-08 | 1" ORB (1 5/16"-12 thread) Male x 1/2" Female Pipe - Stainless Steel
$88.33
SS-6405-16-12 SS-6405-16-12 | 1" ORB (1 5/16"-12 thread) Male x 3/4" Female Pipe - Stainless Steel
$95.53
SS-6405-16-16 SS-6405-16-16 | 1" ORB (1 5/16"-12 thread) Male x 1" Female Pipe - Stainless Steel
$72.22
SS-6405-16-20 SS-6405-16-20 | 1" ORB (1 5/16"-12 thread) Male x 1 1/4" Female Pipe - Stainless Steel
$74.18
SS-6405-20-12 SS-6405-20-12 | 1 1/4" ORB (1-5/8"-12 thread) Male x 3/4" Female Pipe - Stainless Steel
$115.56
SS-6405-20-16 SS-6405-20-16 | 1 1/4" ORB (1-5/8"-12 thread) Male x 1" Female Pipe - Stainless Steel
$97.51
SS-6405-20-20 SS-6405-20-20 | 1 1/4" ORB (1-5/8"-12 thread) Male x 1 1/4" Female Pipe - Stainless Steel
$157.41
SS-6405-20-24 SS-6405-20-24 | 1 1/4" ORB (1-5/8"-12 thread) Male x 1 1/2" Female Pipe - Stainless Steel
$309.43
SS-6405-24-12 SS-6405-24-12 | 1 1/2" ORB (1-7/8"-12 thread) Male x 3/4" Female Pipe - Stainless Steel
$148.98
SS-6405-24-16 SS-6405-24-16 | 1 1/2" ORB (1-7/8"-12 thread) Male x 1" Female Pipe - Stainless Steel
$150.48
SS-6405-24-20 SS-6405-24-20 | 1 1/2" ORB (1-7/8"-12 thread) Male x 1 1/4" Female Pipe - Stainless Steel
$204.12
SS-6405-24-24 SS-6405-24-24 | 1 1/2" ORB (1-7/8"-12 thread) Male x 1 1/2" Female Pipe - Stainless Steel
$200.07
SS-6405-32-32 SS-6405-32-32 | 2" ORB (2 1/2"-12 thread) Male x 2" Female Pipe - Stainless Steel
$292.61
Check the items you wish to purchase, then click


Features:
SAE O-Ring Boss ORB Male to NPTF Pipe Female Adapter (Stainless)
Material: 316 Stainless Steel
Standards: ASME B1.20.1, SAE AS71051
Intercomparable: AEROQUIP 2216, PARKER F5OG-SS, SSP GCF



Product Details:
Pressure Ratings:
SAE J514 Pressure Ratings
Nom. SAE Dash Size Nom. Tube O.D. Inches 37 Degree Flare Straight Thread Nom. Pipe Size SAE St. Threads Union & Bulkhead (PSI) Fittings With Pipe Threads (PSI)
2 1/8 5/16"-24 1/8" 5000 5000
3 3/16 3/8"-24 1/8" 5000 5000
4 1/4 7/16"-20 1/8" 5000 5000
5 5/16 1/2"-20 1/8" 5000 5000
6 3/8 9/16"-18 1/4" 5000 5000
8 1/2 3/4"-16 3/8" 4500 4000
10 5/8 7/8"-14 1/2" 3500 3000
12 3/4 1 1/16"-12 3/4" 3500 3000
14 7/8 1 3/16"-12 3/4" 3000 2500
16 1 1 5/16"-12 1" 3000 2000
20 1 1/4 1 5/8"-12 1 1/4" 2500 1150
24 1 1/2 1 7/8"-12 1 1/2" 2000 1000
32 2 2 1/2"-12 2" 1500 1000
NOTE: Since many factors influence the pressure at which a system will or will not perform satisfactory, values shown in this table should not be construed as guaranteed minimum.

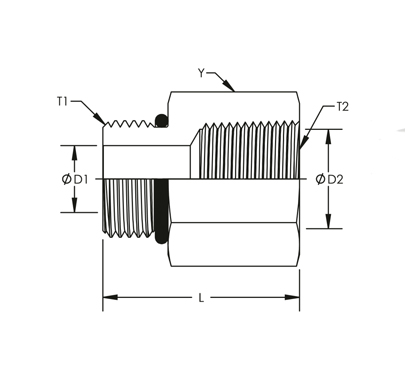

Dimensional Drawings:
Product ID Y HEX T1 D1 T2 D2 L
SS-6405-04-02 0.563 7/16-20 0.172 1/8-27 0.332 1
SS-6405-04-04 0.75 7/16-20 0.172 1/4-18 0.438 1.205
SS-6405-04-06 0.875 7/16-20 0.172 3/8-18 0.563 1.351
SS-6405-05-02 0.625 1/2-20 0.234 1/8-27 0.332 0.98
SS-6405-05-04 0.75 1/2-20 0.234 1/4-18 0.438 1.205
SS-6405-06-02 0.75 9/16-18 0.297 1/8-27 0.332 1.025
SS-6405-06-04 0.75 9/16-18 0.297 1/4-18 0.438 1.235
SS-6405-06-06 0.875 9/16-18 0.297 3/8-18 0.563 1.301
SS-6405-06-08 1.125 9/16-18 0.297 1/2-14 0.703 1.642
SS-6405-08-02 0.875 3/4-16 0.391 1/8-27 0.332 1.121
SS-6405-08-04 0.875 3/4-16 0.391 1/4-18 0.438 1.331
SS-6405-08-06 0.875 3/4-16 0.391 3/8-18 0.563 1.341
SS-6405-08-08 1.125 3/4-16 0.391 1/2-14 0.703 1.71
SS-6405-08-12 1.375 3/4-16 0.391 3/4-14 0.906 1.76
SS-6405-10-04 1 7/8-14 0.484 1/4-18 0.438 1.402
SS-6405-10-06 1 7/8-14 0.484 3/8-18 0.563 1.412
SS-6405-10-08 1.125 7/8-14 0.484 1/2-14 0.703 1.632
SS-6405-10-12 1.375 7/8-14 0.484 3/4-14 0.906 1.7
SS-6405-12-04 1.25 1-1/16-12 0.609 1/4-18 0.438 1.55
SS-6405-12-06 1.25 1-1/16-12 0.609 3/8-18 0.563 1.56
SS-6405-12-08 1.25 1-1/16-12 0.609 1/2-14 0.703 1.78
SS-6405-12-12 1.375 1-1/16-12 0.609 3/4-14 0.906 1.79
SS-6405-12-16 1.625 1-1/16-12 0.609 1-11-1/2 1.141 2.033
SS-6405-14-12 1.375 1-3/16-12 0.719 3/4-14 0.906 1.764
SS-6405-16-06 1.5 1-5/16-12 0.844 3/8-18 0.563 1.573
SS-6405-16-08 1.5 1-5/16-12 0.844 1/2-14 0.703 1.793
SS-6405-16-12 1.5 1-5/16-12 0.844 3/4-14 0.906 1.803
SS-6405-16-16 1.625 1-5/16-12 0.844 1-11-1/2 1.141 2.033
SS-6405-16-20 2 1-5/16-12 0.844 1-1/4-11-1/2 1.484 2.286
SS-6405-20-12 1.875 1-5/8-12 1.078 3/4-14 0.906 1.876
SS-6405-20-16 1.875 1-5/8-12 1.078 1-11-1/2 1.141 2.106
SS-6405-20-20 2 1-5/8-12 1.078 1-1/4-11-1/2 1.484 2.126
SS-6405-20-24 2.375 1-5/8-12 1.078 1-1/2-11-1/2 1.744 2.291
SS-6405-24-12 2.125 1-7/8-12 1.313 3/4-14 0.906 1.27
SS-6405-24-16 2.125 1-7/8-12 1.313 1-11-1/2 1.141 2.111
SS-6405-24-20 2.125 1-7/8-12 1.313 1-1/4-11-1/2 1.484 2.131
SS-6405-24-24 2.375 1-7/8-12 1.313 1-1/2-11-1/2 1.744 2.131
SS-6405-32-32 2.875 2-1/2-12 1.781 2-11-1/2 2.213 2.231
Competitor Cross Reference:
INTERCHANGEABLE WITH:
ITEM # AEROQUIP PARKER SSP SAE
6405-02-02 259-2216-2-2 2-1/8 F5OG-SS 2X1/8GCF 90156
6405-04-02 259-2216-2-4 4-1/8 F5OG-SS 4X1/8GCF 90156
6405-04-04 259-2216-4-4 4-1/4 F5OG-SS 4X1/4GCF 90156
6405-06-02 259-2216-2-6 6-1/8 F5OG-SS 6X1/8GCF 90156
6405-06-04 259-2216-4-6 6-1/4 F5OG-SS 6X1/4GCF 90156
6405-06-06 259-2216-6-6 6-3/8 F5OG-SS 6X3/8GCF 90156
6405-06-08 259-2216-8-6 6-1/2 F5OG-SS 6X1/2GCF 90156
6405-08-04 259-2216-4-8 8-1/4 F5OG-SS 8X1/4GCF 90156
6405-08-06 259-2216-6-8 8-3/8 F5OG-SS 8X3/8GCF 90156
6405-08-08 259-2216-8-8 8-1/2 F5OG-SS 8X1/2GCF 90156
6405-08-12 259-2216-12-8 8-3/4 F5OG-SS 8X3/4GCF 90156
6405-10-06 259-2216-6-10 10-3/8 F5OG-SS 10X3/8GCF 90156
6405-10-08 259-2216-8-10 10-1/2 F5OG-SS 10X1/2GCF 90156
6405-10-12 259-2216-12-10 10-3/4 F5OG-SS 10X3/4GCF 90156
6405-12-08 259-2216-8-12 12-1/2 F5OG-SS 12X1/2GCF 90156
6405-12-12 259-2216-12-12 12-3/4 F5OG-SS 12X3/4GCF 90156
6405-16-08 259-2216-8-16 16-1/2 F5OG-SS 16X1/2GCF 90156
6405-16-12 259-2216-12-16 16-3/4 F5OG-SS 16X3/4GCF 90156
6405-16-16 259-2216-16-16 16-1 F5OG-SS 16X1GCF 90156
6405-16-20 259-2216-20-16 16-1 1/4 F5OG-SS 16X1-1/4GCF 90156
6405-20-12 259-2216-12-20 20-3/4 F5OG-SS 20X3/4GCF 90156
6405-20-16 259-2216-16-20 20-1 F5OG-SS 20X1GCF 90156
6405-20-20 259-2216-20-20 20-1 1/4 F5OG-SS 20X1-1/4GCF 90156
6405-24-12 259-2216-12-24 24-3/4 F5OG-SS 24X3/4GCF 90156
6405-24-16 259-2216-16-24 24-1 F5OG-SS 24X1GCF 90156
6405-24-20 259-2216-20-24 24-1 1/4 F5OG-SS 24X1-1/4GCF 90156
6405-24-24 259-2216-24-24 24-1 1/2 F5OG-SS 24X1-1/2GCF 90156
6405-32-32 259-2216-32-32 32-2 F5OG-SS 32X2GCF 90156
