SS-6801

JIC/AN SAE Flare Male to SAE O-Ring Boss ORB Male 90 Elbow

Manufactured to the precise SAE J514 standard, our stainless steel ORB (O-ring Boss) fittings exemplify robustness and precision. With innate resistance to corrosion and rust, they're tailored for demanding settings. Featuring ORB (O-Ring Boss) and NPT configurations, these fittings ensure broad application. Stainless steel guarantees enduring strength and a polished look.

Material:316L Stainless Steel

Shaping:Forged

Standards:ASME B1.20.1, SAE AS71051

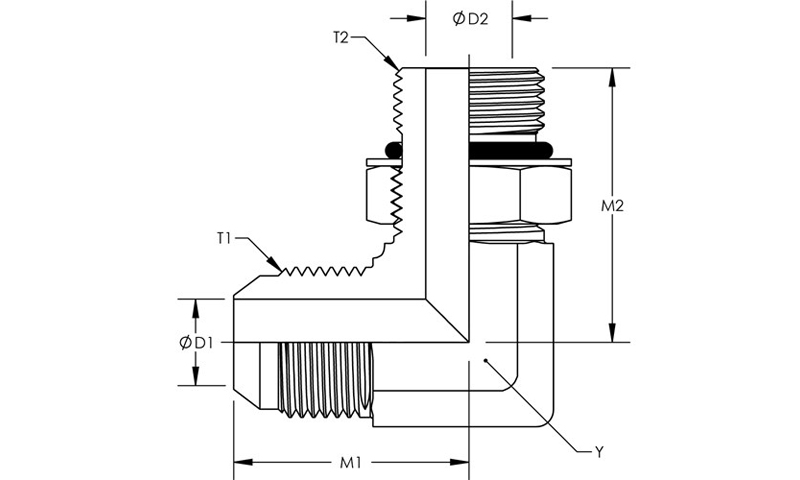

Dimensional Drawings

Technical Specs

Competitor Cross Reference

Material:

Size:

Item code	Item name	Qty	List price	Your price	Total
SS-6801-02-02	1/8" 37° JIC (5/16"-24 thread) x 1/8" ORB (5/16"-24 thread) Male 90° - Stainless Steel	Quantity	List price $41.10	Your price	Total $41.10
SS-6801-03-03	3/16" 37° JIC (3/8"-24 thread) x 3/16" ORB (3/8"-24 thread) Male 90° - Stainless Steel	Quantity	List price $39.38	Your price	Total $39.38
SS-6801-04-04	1/4" 37° JIC (7/16"-20 thread) x 1/4" Male ORB (7/16"-20 thread) 90° - Stainless Steel	Quantity	List price $30.73	Your price	Total $30.73
SS-6801-04-06	1/4" 37° JIC (7/16"-20 thread) x 3/8" ORB (9/16"-18 thread) Male 90° - Stainless Steel	Quantity	List price $24.83	Your price	Total $24.83
SS-6801-04-08	1/4" 37° JIC (7/16"-20 thread) x 1/2" ORB (3/4"-16 thread) Male 90° - Stainless Steel	Quantity	List price $59.45	Your price	Total $59.45
SS-6801-05-05	5/16" 37° JIC (1/2"-20 thread) x 5/16" ORB (1/2"-20 thread) Male 90° - Stainless Steel	Quantity	List price $53.25	Your price	Total $53.25
SS-6801-06-04	3/8" 37° JIC (9/16"-18 thread) x 1/4" ORB (7/16"-20 thread) Male 90° - Stainless Steel	Quantity	List price $56.73	Your price	Total $56.73
SS-6801-06-05	3/8" 37° JIC (9/16"-18 thread) x 5/16" ORB (1/2"-20 thread) Male 90° - Stainless Steel	Quantity	List price $25.96	Your price	Total $25.96
SS-6801-06-06	3/8" 37° JIC (9/16"-18 thread) x 3/8" ORB (9/16"-18 thread) Male 90° - Stainless Steel	Quantity	List price $34.50	Your price	Total $34.50
SS-6801-06-08	3/8" 37° JIC (9/16"-18 thread) x 1/2" ORB (3/4"-16 thread) Male 90° - Stainless Steel	Quantity	List price $62.21	Your price	Total $62.21
SS-6801-06-10	3/8" 37° JIC (9/16"-18 thread) x 5/8" ORB (7/8"-14 thread) Male 90° - Stainless Steel	Quantity	List price $102.50	Your price	Total $102.50
SS-6801-08-04	1/2" 37° JIC (3/4"-16 thread) x 1/4" ORB (7/16"-20 thread) Male 90° - Stainless Steel	Quantity	List price $67.13	Your price	Total $67.13
SS-6801-08-06	1/2" 37° JIC (3/4"-16 thread) x 3/8" ORB (9/16"-18 thread) Male 90° - Stainless Steel	Quantity	List price $45.00	Your price	Total $45.00
SS-6801-08-08	1/2" 37° JIC (3/4"-16 thread) x 1/2" ORB (3/4"-16 thread) Male 90° - Stainless Steel	Quantity	List price $52.59	Your price	Total $52.59
SS-6801-08-10	1/2" 37° JIC (3/4"-16 thread) x 5/8" ORB (7/8"-14 thread) Male 90° - Stainless Steel	Quantity	List price $59.89	Your price	Total $59.89
SS-6801-08-12	1/2" 37° JIC (3/4"-16 thread) x 3/4" ORB (1 1/16"-12 thread) Male 90° - Stainless Steel	Quantity	List price $84.97	Your price	Total $84.97
SS-6801-08-16	1/2" 37° JIC (3/4"-16 thread) x 1" ORB (1 5/16"-12 thread) Male 90° - Stainless Steel	Quantity	List price $168.75	Your price	Total $168.75
SS-6801-10-08	5/8" 37° JIC (7/8"-14 thread) x 1/2" ORB (3/4"-16 thread) Male 90° - Stainless Steel	Quantity	List price $123.32	Your price	Total $123.32
SS-6801-10-10	5/8" 37° JIC (7/8"-14 thread) x 5/8" ORB (7/8"-14 thread) Male 90° - Stainless Steel	Quantity	List price $50.87	Your price	Total $50.87
SS-6801-10-12	5/8" 37° JIC (7/8"-14 thread) x 3/4" ORB (1 1/16"-12 thread) Male 90° - Stainless Steel	Quantity	List price $156.50	Your price	Total $156.50
SS-6801-12-08	3/4" 37° JIC (1 1/16"-12 thread) x 1/2" ORB (3/4"-16 thread) Male 90° - Stainless Steel	Quantity	List price $115.07	Your price	Total $115.07
SS-6801-12-10	3/4" 37° JIC (1 1/16"-12 thread) x 5/8" ORB (7/8"-14 thread) Male 90° - Stainless Steel	Quantity	List price $141.79	Your price	Total $141.79
SS-6801-12-12	3/4" 37° JIC (1 1/16"-12 thread) x 3/4" ORB (1 1/16"-12 thread) Male 90° - Stainless Steel	Quantity	List price $102.23	Your price	Total $102.23
SS-6801-12-16	3/4" 37° JIC (1 1/16"-12 thread) x 1" ORB (1 5/16"-12 thread) Male 90° - Stainless Steel	Quantity	List price $62.13	Your price	Total $62.13
SS-6801-12-20	3/4" 37° JIC (1 1/16"-12 thread) x 1 1/4" ORB (1-5/8"-12 thread) Male 90° - Stainless Steel	Quantity	List price $252.16	Your price	Total $252.16
SS-6801-16-12	1" 37° JIC (1 5/16"-12 thread) x 3/4" ORB (1 1/16"-12 thread) Male 90° - Stainless Steel	Quantity	List price $332.61	Your price	Total $332.61
SS-6801-16-16	1" 37° JIC (1 5/16"-12 thread) x 1" ORB (1 5/16"-12 thread) Male 90° - Stainless Steel	Quantity	List price $130.80	Your price	Total $130.80
SS-6801-16-20	1" 37° JIC (1 5/16"-12 thread) x 1 1/4" ORB (1-5/8"-12 thread) Male 90° - Stainless Steel	Quantity	List price $189.63	Your price	Total $189.63
SS-6801-16-24	1" 37° JIC (1 5/16"-12 thread) x 1 1/2" ORB (1-7/8"-12 thread) Male 90° - Stainless Steel	Quantity	List price $265.65	Your price	Total $265.65
SS-6801-20-16	1 1/4" 37° JIC (1 5/8"-12 thread) x 1" ORB (1 5/16"-12 thread) Male 90° - Stainless Steel	Quantity	List price $240.90	Your price	Total $240.90
SS-6801-20-20	1 1/4" 37° JIC (1 5/8"-12 thread) x 1 1/4" ORB (1-5/8"-12 thread) Male 90° - Stainless Steel	Quantity	List price $240.91	Your price	Total $240.91
SS-6801-20-24	1 1/4" 37° JIC (1 5/8"-12 thread) x 1 1/2" ORB (1-7/8"-12 thread) Male 90° - Stainless Steel	Quantity	List price $295.93	Your price	Total $295.93
SS-6801-24-20	1 1/2" 37° JIC (1 7/8"-12 thread) x 1 1/4" ORB (1-5/8"-12 thread) Male 90° - Stainless Steel	Quantity	List price $372.80	Your price	Total $372.80
SS-6801-24-24	1 1/2" 37° JIC (1 7/8"-12 thread) x 1 1/2" ORB (1-7/8"-12 thread) Male 90° - Stainless Steel	Quantity	List price $326.40	Your price	Total $326.40
SS-6801-32-32	2" 37° JIC (2 1/2"-12 thread) x 2" ORB (2 1/2"-12 thread) Male 90° - Stainless Steel	Quantity	List price $780.22	Your price	Total $780.22
