SS-6802

JIC/AN SAE Flare Male to SAE O-Ring Boss ORB Male 45 Elbow

Manufactured to the precise SAE J514 standard, our stainless steel ORB (O-ring Boss) fittings exemplify robustness and precision. With innate resistance to corrosion and rust, they're tailored for demanding settings. Featuring ORB (O-Ring Boss) and NPT configurations, these fittings ensure broad application. Stainless steel guarantees enduring strength and a polished look.

Material:316L Stainless Steel

Shaping:Forged

Standards:ASME B1.20.1, SAE AS71051

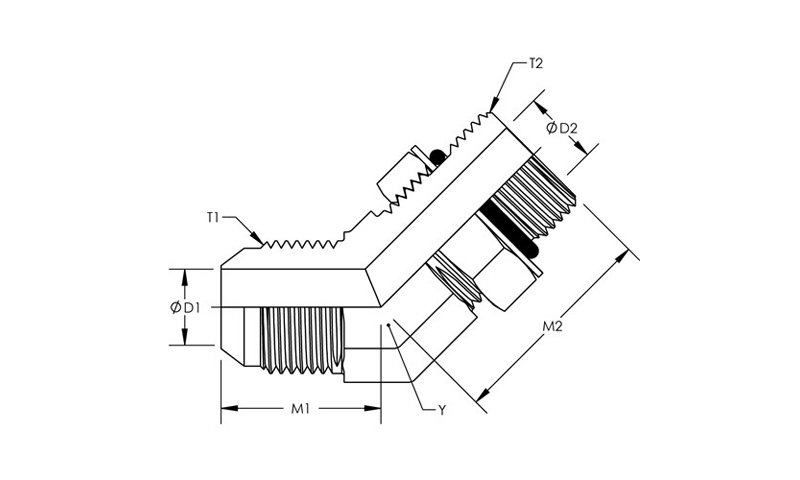

Dimensional Drawings

Technical Specs

Competitor Cross Reference

Material:

Size:

Item code	Item name	Qty	List price	Your price	Total
SS-6802-04-04	1/4" 37° JIC (7/16"-20 thread) x 1/4" 37° ORB (7/16"-20 thread) Male 45° - Stainless Steel	Quantity	List price $32.70	Your price	Total $32.70
SS-6802-06-06	3/8" 37° JIC (9/16"-18 thread) x 3/8" ORB (9/16"-18 thread) Male 45° - Stainless Steel	Quantity	List price $60.64	Your price	Total $60.64
SS-6802-08-06	1/2" 37° JIC (3/4"-16 thread) x 3/8" ORB (9/16"-18 thread) Male 45° - Stainless Steel	Quantity	List price $89.51	Your price	Total $89.51
SS-6802-08-08	1/2" 37° JIC (3/4"-16 thread) x 1/2" ORB (3/4"-16 thread) Male 45° - Stainless Steel	Quantity	List price $63.95	Your price	Total $63.95
SS-6802-08-10	1/2" 37° JIC (3/4"-16 thread) x 5/8" ORB (7/8"-14 thread) Male 45° - Stainless Steel	Quantity	List price $80.11	Your price	Total $80.11
SS-6802-08-12	1/2" 37° JIC (3/4"-16 thread) x 3/4" ORB (1 1/16"-12 thread) Male 45° - Stainless Steel	Quantity	List price $196.61	Your price	Total $196.61
SS-6802-10-10	5/8" 37° JIC x 5/8" ORB (7/8"-14 thread) Male 45° - Stainless Steel	Quantity	List price $101.22	Your price	Total $101.22
SS-6802-12-10	3/4" 37° JIC (1 1/16"-12 thread) x 5/8" ORB (7/8"-14 thread) Male 45° - Stainless Steel	Quantity	List price $129.00	Your price	Total $129.00
SS-6802-12-12	3/4" 37° JIC (1 1/16"-12 thread) x 3/4" ORB (1 1/16"-12 thread) Male 45° - Stainless Steel	Quantity	List price $106.39	Your price	Total $106.39
SS-6802-12-16	3/4" 37° JIC (1 1/16"-12 thread) x 1" ORB (1 5/16"-12 thread) Male 45° - Stainless Steel	Quantity	List price $202.66	Your price	Total $202.66
SS-6802-16-16	1" 37° JIC (1 5/16"-12 thread) x 1" ORB (1 5/16"-12 thread) Male 45° - Stainless Steel	Quantity	List price $212.78	Your price	Total $212.78
SS-6802-20-20	1 1/4" 37° JIC (1 5/8"-12 thread) x 1 1/4" ORB (1-5/8"-12 thread) Male 45° - Stainless Steel	Quantity	List price $323.63	Your price	Total $323.63
SS-6802-24-24	1 1/2" 37° JIC (1 7/8"-12 thread) x 1 1/2" ORB (1-7/8"-12 thread) Male 45° - Stainless Steel	Quantity	List price $246.33	Your price	Total $246.33
SS-6802-32-32	2" 37° JIC (2 1/2"-12 thread) x 2" ORB (2 1/2"-12 thread) Male 45° - Stainless Steel	Quantity	List price $1,063.95	Your price	Total $1,063.95

Items of 14 items

Page:of 1
