T-SF - Union Tee | Tube Fittings
T-SF Union Tee  SF  sold by Titanfittings.com


Stainless Tube Fitting Union Tee


Material: 316 Stainless Steel
Bar Stock: ASTM A479, ASTM A276
Forging: ASTM B164
U-SF - Union Tee

Item# Item Name Our Price Qty Add
T-1-SF T-01-SF - 1/16" Tube Union Tee - Single Ferrule Stainless | Tube Fittings
$38.48
T-2-SF T-02-SF - 1/8" Tube Union Tee - Single Ferrule Stainless | Tube Fittings
$23.18
T-3-SF T-03-SF - 3/16" Tube Union Tee - Single Ferrule Stainless | Tube Fittings
$23.15
T-4-SF T-04-SF- 1/4" Tube Union Tee - Single Ferrule Stainless | Tube Fittings
$22.20
T-5-SF T-05-SF - 5/16" Tube Union Tee - Single Ferrule Stainless | Tube Fittings
$23.35
T-6-SF T-06-SF- 3/8" Tube Union Tee - Single Ferrule Stainless | Tube Fittings
$27.11
T-8-SF T-08-SF - 1/2" Tube Union Tee - Single Ferrule Stainless | Tube Fittings
$38.48
T-10-SF T-10-SF- 5/8" Tube Union Tee - Single Ferrule Stainless | Tube Fittings
$40.83
T-12-SF T-12-SF - 3/4" Tube Union Tee - Single Ferrule Stainless | Tube Fittings
$55.85
T-14-SF T-14-SF - 7/8" Tube Union Tee - Single Ferrule Stainless | Tube Fittings
$89.37
T-16-SF T-16-SF - 1" Tube Union Tee - Single Ferrule Stainless | Tube Fittings
$110.77
T-20-SF T-20-SF - 1 1/4" Tube Union Tee - Single Ferrule Stainless | Tube Fittings
$276.89
T-24-SF T-24-SF- 1 1/2" Tube Union Tee - Single Ferrule Stainless | Tube Fittings
$395.55
T-32-SF T-32-SF - 2" Tube Union Tee - Single Ferrule Stainless | Tube Fittings
$929.19
Check the items you wish to purchase, then click


Features:
Tube Fitting Material: 316 Stainless Steel



Product Details:
Pressure Ratings:
Tube O.D.
(inch)
TUBE WALL THICKNESS (inch)
0.010 0.012 0.014 0.016 0.020 0.028 0.035 0.049 0.065 0.083 0.095 0.109 0.120
1/16 5600 6800 8100 9400 12000
1/8 8500 10900
3/16 5400 7000 10200
1/4 4000 5100 7500 10200
5/16 4000 5800 8000
3/8 3300 4800 6500
1/2 2600 3700 5100 6700
5/8 2900 4000 5200 6000
3/4 2400 3300 4200 4900 5800
7/8 2000 2800 3600 4200 4800
1 2400 3100 3600 4200 4700
= Tubing working pressure (psi)

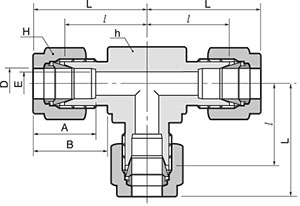

Dimensional Drawings:
CONNECTS WITH FRACTIONAL TUBE
Tube O.D.dWidth Across Flat
Part No.D (inch)Minh (inch)H (inch)ABIL
U-11/161.273/8414108.6310.921418.03
U-21/82.283/84147112.715.2415.822.35
U-33/163.041/24127613.711618.5425.14
U-41/44.821/24153315.2417.7820.127.4
U-55/166.355/84140216.2518.5422.3529.71
U-63/87.115/84159416.7619.323.1130.48
U-81/210.4113/164146322.8621.8425.936.06
U-105/812.71124.3821.8428.738.86
U-123/415.741-1/163944824.3821.8429.7139.87
U-147/818.281-3/83798725.921.8434.5444.7
U-16122.351-3/83725731.2426.4136.8349.02
U-201-1/427.691-11/163945441.1538.8644.4566.55
U-241-1/234.0423801850.0445.2150.877.98
U-32245.972-3/4367.5662.7469.85107.19
Competitor Cross Reference:
COMPETITOR PART NUMBER
ITEM #SWAGELOKSSP DUOLOKPARKER A-LOK
U-1SS-100-3ISSD1U1ET1-SS
U-2SS-200-3ISSD2U2ET2-SS
U-3SS-300-3ISSD3U3ET3-SS
U-4SS-400-3ISSD4U4ET4-SS
U-5SS-500-3ISSD5U5ET5-SS
U-6SS-600-3ISSD6U6ET6-SS
U-8SS-810-3ISSD8U8ET8-SS
U-10SS-1010-3ISSD10U10ET10-SS
U-12SS-1210-3ISSD12U12ET12-SS
U-14SS-1410-3ISSD14U14ET14-SS
U-16SS-1610-3ISSD16U16ET16-SS
U-20SS-2000-3ISSD20U20ET20-SS
U-24SS-2400-3ISSD24U24ET24-SS
U-32SS-3200-3ISSD32U32ET32-SS
