C-SF - Cap | Tube Fittings
C-SF Cap SF  sold by Titanfittings.com


Stainless Tube Fitting Cap


Material: 316 Stainless Steel
Bar Stock: ASTM A479, ASTM A276
Forging: ASTM B164
C-SF - Cap

Item# Item Name Our Price Qty Add
C-1-SF C-01-SF - 1/16" Tube Cap - Single Ferrule Stainless | Tube Fittings
$11.31
C-2-SF C-02-SF - 1/8" Tube Cap - Single Ferrule Stainless | Tube Fittings
$6.58
C-3-SF C-03-SF - 3/16" Tube Cap - Single Ferrule Stainless | Tube Fittings
$6.25
C-4-SF C-04-SF - 1/4" Tube Cap - Single Ferrule Stainless | Tube Fittings
$5.77
C-5-SF C-05-SF - 5/16" Tube Cap - Single Ferrule Stainless | Tube Fittings
$6.02
C-6-SF C-06-SF - 3/8" Tube Cap - Single Ferrule Stainless | Tube Fittings
$7.20
C-8-SF C-08-SF - 1/2" Tube Cap - Single Ferrule Stainless | Tube Fittings
$11.31
C-10-SF C-10-SF - 5/8" Tube Cap - Single Ferrule Stainless | Tube Fittings
$13.85
C-12-SF C-12-SF - 3/4" Tube Cap - Single Ferrule Stainless | Tube Fittings
$17.74
C-14-SF C-14-SF - 7/8" Tube Cap - Single Ferrule Stainless | Tube Fittings
$27.67
C-16-SF C-16-SF - 1" Tube Cap - Single Ferrule Stainless | Tube Fittings
$34.75
Check the items you wish to purchase, then click


Features:
Tube Fitting Material: 316 Stainless Steel



Product Details:
Pressure Ratings:
Tube O.D.
(inch)
TUBE WALL THICKNESS (inch)
0.010 0.012 0.014 0.016 0.020 0.028 0.035 0.049 0.065 0.083 0.095 0.109 0.120
1/16 5600 6800 8100 9400 12000
1/8 8500 10900
3/16 5400 7000 10200
1/4 4000 5100 7500 10200
5/16 4000 5800 8000
3/8 3300 4800 6500
1/2 2600 3700 5100 6700
5/8 2900 4000 5200 6000
3/4 2400 3300 4200 4900 5800
7/8 2000 2800 3600 4200 4800
1 2400 3100 3600 4200 4700
= Tubing working pressure (psi)

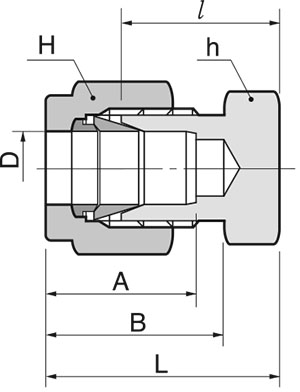

Dimensional Drawings:
CONNECTS CAPS END OF FRACTIONAL TUBES
Tube O.D.Width Across Flat
Part No.D (inch)h (inch)H (inch)ABIL
C-11/165/165/168.6310.9211.214.98
C-21/87/167/1612.715.2413.4620.06
C-33/167/161/213.711614.7321.33
C-41/41/29/1615.2417.781623.36
C-55/169/165/816.2518.5417.0124.38
C-63/85/811/1616.7619.318.2825.65
C-81/213/167/822.8621.8419.0529.21
C-105/815/16124.3821.8419.8129.97
C-123/41-1/161-1/824.3821.8421.3331.49
C-147/81-3/161-1/425.921.8423.8734.03
C-1611-3/81-1/231.2426.4126.1638.35
Competitor Cross Reference:
COMPETITOR PART NUMBER
ITEM #SWAGELOKSSP DUOLOKPARKER A-LOK
C-1SS-100-CISSD1C1BLEN1-SS
C-2SS-200-CISSD2C2BLEN2-SS
C-3SS-300-CISSD3C3BLEN3-SS
C-4SS-400-CISSD4C4BLEN4-SS
C-5SS-500-CISSD5C5BLEN5-SS
C-6SS-600-CISSD6C6BLEN6-SS
C-8SS-810-CISSD8C8BLEN8-SS
C-10SS-1010-CISSD10C10BLEN10-SS
C-12SS-1210-CISSD12C12BLEN12-SS
C-14SS-1410-CISSD14C14BLEN14-SS
C-16SS-1610-CISSD16C16BLEN16-SS
