6801L

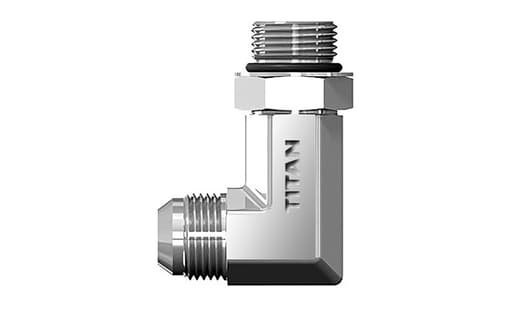

37° JIC SAE Flare Male x SAE O-Ring Boss ORB Male 90° Elbow Long

SAE O-Ring Boss (ORB) hydraulic adapters are crafted from pressure-resistant carbon steel, which is renowned for its resilience and durability in high-demand hydraulic settings. ORB adapters can also be used to convert to NPT (National Pipe Thread), JIC (Joint Industry Council) conforming to SAE J514 technical specifications, and NPSM (National Pipe Straight Mechanical). Each type is tailored with distinct threading and sealing designs to meet diverse hydraulic system needs. To further enhance their durability and corrosion resistance, these adapters are coated with a zinc-trivalent anti-corrosion plating.

Material:Carbon Steel

Plating:Trivalent Zinc

Shaping:Forged

O-Ring Material:NBR (Buna-N) (Viton available upon request)

Technical Specs

Competitor Cross Reference

Material:

Size:

Item code	Item name	Qty	List price	Your price	Total
6801L-04-04	90° Elbow 1/4" Male JIC (7/16"-20 thread) x 1/4" ORB (1-5/8"-12 thread) Male Long	Quantity	List price $7.34	Your price	Total $7.34
6801L-04-06	90° Elbow 1/4" Male JIC (7/16"-20 thread) x 3/8" ORB (9/16"-18 thread) Male Long	Quantity	List price $12.63	Your price	Total $12.63
6801L-06-06	90° Elbow 3/8" Male JIC (9/16"-18 thread) x 3/8" ORB (9/16"-18 thread) Male Long	Quantity	List price $5.98	Your price	Total $5.98
6801L-06-08	90° Elbow 3/8" Male JIC (9/16"-18 thread) x 1/2" ORB (3/4"-16 thread) Male Long	Quantity	List price $10.37	Your price	Total $10.37
6801L-08-08	90° Elbow 1/2" Male JIC (3/4"-16 thread) x 1/2" ORB (3/4"-16 thread) Male Long	Quantity	List price $7.10	Your price	Total $7.10
6801L-08-10	90° Elbow 1/2" Male JIC (3/4"-16 thread) x 5/8" ORB (7/8"-14 thread) Male Long	Quantity	List price $15.50	Your price	Total $15.50
6801L-10-08	90° Elbow 5/8" Male JIC (7/8"-14 thread) x 1/2" ORB (3/4"-16 thread) Male Long	Quantity	List price $10.96	Your price	Total $10.96
6801L-10-10	90° Elbow 5/8" Male JIC (7/8"-14 thread) x 5/8" ORB (7/8"-14 thread) Male Long	Quantity	List price $11.95	Your price	Total $11.95
6801L-12-12	90° Elbow 3/4" Male JIC (1 1/16"-12 thread) x 3/4" ORB (1 1/16"-12 thread) Male Long	Quantity	List price $15.59	Your price	Total $15.59
6801L-16-16	90° Elbow 1" Male JIC (1 5/16"-12 thread) x 1" ORB (1 5/16"-12 thread) Male Long	Quantity	List price $54.38	Your price	Total $54.38

Items of 10 items

Page:of 1
