The Essential Roles of Swivel Adapters vs. Live Swivels

Swivel adapters and live swivels are both critical in managing movement and reducing stress in hydraulic systems. These components, although seemingly similar, play distinct roles in ensuring the efficiency and durability of hydraulic setups. Understanding the differences and specific applications of these two types of swivels is key to optimizing the design and functionality of hydraulic systems.

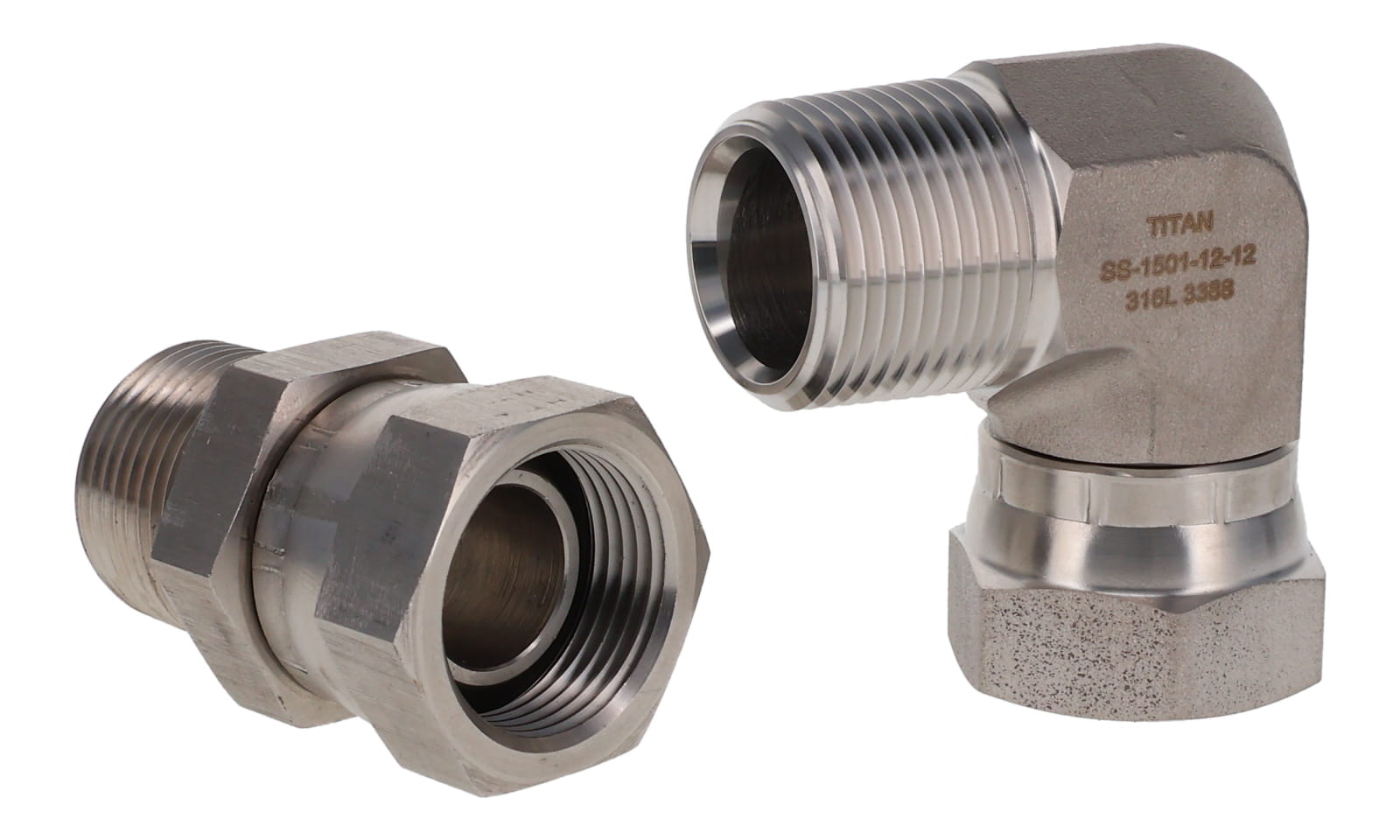

Swivel Adapters: Enhancing Flexibility and Durability in Hydraulic Systems
Swivel adapters in hydraulic systems are essential for preventing hose twisting and kinking, which can result from the movement or bending of hoses. Their primary function is to facilitate a more flexible and efficient installation by allowing hoses to rotate freely, thus reducing wear and potential failure. These adapters are particularly beneficial in space-constrained environments, as they enable more direct hose routing and reduce the need for additional fittings. By simplifying installation and maintenance and enhancing the system's overall performance, swivel adapters improve both the functionality and longevity of hydraulic systems.

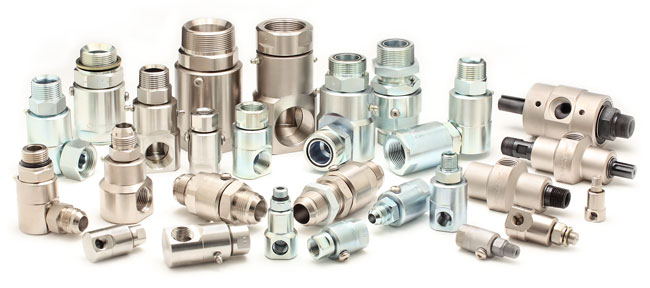

Live Swivels: The Backbone of Dynamic, High-Pressure Hydraulic Applications
Live swivels, on the other hand, are designed for continuous movement under high pressure, making them indispensable in dynamic hydraulic applications such as mobile machinery and robotic arms. They allow hoses to move freely in multiple directions without compromising the seal integrity, thus significantly extending hose life and preventing leaks. The ability to maintain continuous, flexible movement under pressure not only ensures the optimal performance of the hydraulic system but also enhances safety, particularly in high-pressure scenarios. This makes live swivels a crucial component in maintaining the reliability and efficiency of complex hydraulic systems.

What are the primary benefits of using swivel adapters in hydraulic systems?
Answer: Swivel adapters offer several key benefits in hydraulic systems. Firstly, they prevent hose twisting and kinking, which can occur due to movement or bending. This not only extends the life of the hoses but also maintains the efficiency of the hydraulic system. Secondly, swivel adapters facilitate a more flexible and efficient installation process. They allow for hoses to rotate freely, which is particularly advantageous in space-constrained environments, enabling more direct hose routing and reducing the need for additional fittings. Overall, they simplify installation and maintenance, enhancing both the functionality and longevity of hydraulic systems.
How do live swivels differ from standard swivel adapters, and why are they important in hydraulic systems?
Answer: Live swivels are specifically designed for continuous movement under high pressure, setting them apart from standard swivel adapters. They are crucial in dynamic hydraulic applications, such as in mobile machinery and robotic arms, where hoses are subject to continuous motion. Live swivels allow hoses to move freely in multiple directions while maintaining a leak-proof seal, significantly extending hose life and preventing leaks. Their ability to sustain flexible movement under pressure ensures optimal performance of the hydraulic system and enhances safety, especially in high-pressure scenarios. This makes live swivels an essential component in complex and demanding hydraulic systems, where reliability and efficiency are paramount.
Associated FAQs: Pipe Fittings
Frequently Asked Questions
What are the most common types of pipe fittings?
The most common types of pipe fittings include couplings, elbows, tees, reducers, adapters, unions, and caps. Each serves a specific purpose in a piping system. Couplings connect pipe sections, elbows change flow direction, tees split or combine flow, and reducers connect different pipe sizes.
At Titan Fittings, we offer a variety of stainless steel fittings designed to provide secure, reliable connections for industrial, hydraulic, and fluid-transfer applications.
How do I measure pipe fittings accurately?
To measure pipe fittings accurately, first identify whether the connection has male or female threads. Measure the outside diameter of male threads or the inside diameter of female threads using a caliper. Next, determine thread pitch using a thread gauge and identify the thread standard, such as NPT or BSP.
Compare these measurements with a thread identification chart. Also verify the nominal pipe size, connection type, and applicable pipe schedule to ensure compatibility.
Titan Fittings provides technical resources to help customers identify and select correctly sized fittings.
What are brass pipe fittings used for?
Brass pipe fittings are commonly used in plumbing, water distribution, compressed air systems, HVAC equipment, and certain industrial applications. Brass offers good machinability, moderate strength, and corrosion resistance in compatible environments.
However, stainless steel may be a better choice for demanding industrial applications involving high pressures, aggressive fluids, or corrosive environments.
Titan Fittings helps customers evaluate fitting materials based on application requirements, pressure ratings, temperature, and fluid compatibility.
How do I connect two pipes of different sizes?
To connect pipes of different sizes, use a reducing coupling, reducer, or reducing adapter that matches the pipe diameters and connection types.
Concentric reducers maintain a common centerline, while eccentric reducers provide an offset that may be useful for drainage, venting, or avoiding air pockets in certain piping configurations.
Titan Fittings offers stainless steel reducers and adapters for connecting different sizes and fitting configurations while maintaining system integrity.
What industries commonly use pipe fittings?
Pipe fittings are essential in oil and gas, chemical processing, industrial manufacturing, hydraulic equipment, HVAC, agriculture, food processing, and data center liquid cooling.
These industries depend on fittings to connect components, control flow direction, accommodate diameter changes, and maintain reliable fluid or gas transportation.
Titan Fittings supplies industrial fitting solutions for applications requiring dependable performance, material compatibility, and pressure-rated connections.
Why is it important to choose the right pipe fitting?
Choosing the correct pipe fitting helps prevent leaks, pressure loss, premature wear, corrosion, and unexpected equipment downtime.
An improperly selected fitting can compromise system reliability even when the surrounding equipment is correctly specified.
At Titan Fittings, we recommend evaluating material grade, pressure and temperature ratings, thread compatibility, connection dimensions, and operating conditions before selecting a fitting.
Are stainless steel fittings better than brass fittings?
Stainless steel fittings are often preferred for demanding industrial applications because of their strength, durability, and corrosion resistance. Brass fittings are generally more economical and easier to machine, making them suitable for many lower-pressure plumbing and general-purpose applications.
Neither material is universally better. Titan Fittings recommends selecting the material that best matches the operating pressure, fluid chemistry, temperature, environment, and service-life requirements.
Are stainless steel fittings stronger than brass fittings?
Stainless steel fittings generally offer higher mechanical strength than comparable brass fittings, making stainless steel a frequent choice for demanding industrial and high-pressure applications.
However, actual fitting performance depends on the alloy, geometry, manufacturing process, temperature, and published pressure rating.
Titan Fittings recommends selecting fittings based on verified component ratings rather than assuming every stainless steel fitting can withstand higher pressure than every brass fitting.
Which fitting material (Brass or Stainless Steel) is better for high-pressure hydraulic systems?
Stainless steel is often a preferred material for high-pressure hydraulic applications because of its mechanical strength and durability.
However, the correct choice depends on the specific fitting's rated working pressure, sealing design, temperature, and compatibility with the hydraulic fluid.
Titan Fittings recommends using pressure-rated stainless steel hydraulic fittings that meet the system's operating and applicable safety requirements.
Can compression fitting ferrules be reused?
Compression fitting ferrules undergo controlled deformation during their initial installation to grip the tubing and establish a reliable seal.
Previously swaged ferrules generally should not be removed and installed on new tubing because their deformation and gripping characteristics have changed.
Titan Fittings recommends using new ferrules for new tube connections. Reassembly of an existing fitting with the original ferrules attached to the same tubing is a separate procedure that may be permitted by the manufacturer.
What causes reused compression fittings to leak?
Compression fittings may leak after improper reuse because of damaged ferrules, altered sealing surfaces, scratched tubing, contamination, misalignment, or incorrect reassembly.
Removing preswaged ferrules and attempting to install them on different tubing can also compromise the original gripping and sealing geometry.
Titan Fittings recommends inspecting previously assembled components and replacing damaged parts before returning a connection to service.
When should instrumentation fitting ferrules be replaced?
Ferrules should be replaced when they show damage, cracking, excessive wear, corrosion, or other conditions that compromise sealing performance.
New ferrules are generally required when creating a new connection on fresh tubing rather than reassembling an existing qualified assembly.
Titan Fittings recommends following the applicable fitting manufacturer's replacement and reassembly instructions instead of reusing questionable components.
How do you prevent galling in stainless steel threaded fittings?
Thread galling can be reduced by using compatible lubricants or anti-seize compounds where appropriate, keeping threads clean, avoiding cross-threading, and preventing excessive tightening speed or force.
Properly matching threads and following manufacturer installation instructions are also essential.
Titan Fittings recommends inspecting threaded components before assembly and replacing fittings with damaged threads.
Can stainless steel fittings be reused after galling occurs?
Fittings with significant galling, torn threads, or seizure damage generally should not be reused.
Damaged threads can compromise engagement, sealing performance, and the connection's mechanical integrity.
Titan Fittings recommends replacing visibly damaged components rather than attempting to restore severely galled threads for pressure-containing service.
