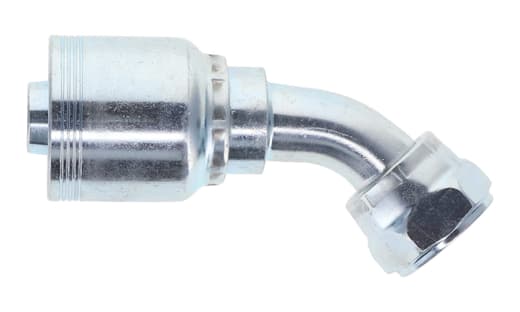

TS4-FJX45

37° JIC Female Swivel, 45 Elbow Hose Fitting

Engineered for optimal performance and durability, the TS4 Series hose end fittings are specifically designed to work seamlessly with 4-wire spiral hydraulic hoses. These fittings are also cross-compatible with the Parker 71 Series, adding an extra layer of versatility. Manufactured from high-strength, corrosion-resistant plated steel, the TS4 Series offers superior pressure-handling capabilities, outperforming standard 1-wire and 2-wire hose fittings. The range of compatible spiral hoses includes R12, 4SH, R13, and R15, and Titan SpiralFlex making these fittings a flexible choice for high-pressure hydraulic applications. Built to exacting crimp specifications, the TS4 Series ensures a robust, leak-resistant connection for a dependable and long-lasting hydraulic seal.

Material:Carbon Steel

Plating:Trivalent Zinc

Recommended for:4 Wire & 6 Wire Spiral Hydraulic Hose

Spiral Hose:R12, 4SH, R13, R15

Cross Reference:Parker 71 Series

Material:

Size:

Item code	Item name	Qty	List price	Your price	Total
TS4-FJX45-06-06	3/8" Hose x 3/8" JIC (9/16"-18 thread) 37° Female Swivel, 45° Elbow crimp fitting	Quantity	List price $25.36	Your price	Total $25.36
TS4-FJX45-08-08	1/2" Hose x 1/2" JIC (3/4"-16 thread) 37° Female Swivel, 45° Elbow crimp fitting	Quantity	List price $27.33	Your price	Total $27.33
TS4-FJX45-08-10	1/2" Hose x 5/8" JIC (7/8"-14 thread) 37° Female Swivel, 45° Elbow crimp fitting	Quantity	List price $42.01	Your price	Total $42.01
TS4-FJX45-08-12	1/2" Hose x 3/4" JIC (1 1/16"-12 thread) 37° Female Swivel, 45° Elbow crimp fitting	Quantity	List price $52.73	Your price	Total $52.73
TS4-FJX45-12-12	3/4" Hose x 3/4" JIC (1 1/16"-12 thread) 37° Female Swivel, 45° Elbow crimp fitting	Quantity	List price $37.80	Your price	Total $37.80
TS4-FJX45-12-16	3/4" Hose x 1" JIC (1 5/16"-12 thread) 37° Female Swivel, 45° Elbow crimp fitting	Quantity	List price $69.06	Your price	Total $69.06
TS4-FJX45-16-16	1" Hose x 1" JIC (1 5/16"-12 thread) 37° Female Swivel, 45° Elbow crimp fitting	Quantity	List price $63.30	Your price	Total $63.30
TS4-FJX45-16-20	1" Hose x 1 1/4" JIC (7/16"-20 thread) 37° Female Swivel, 45° Elbow crimp fitting	Quantity	List price $112.20	Your price	Total $112.20
TS4-FJX45-20-20	1 1/4" Hose x 1 1/4" JIC (7/16"-20 thread) 37° Female Swivel, 45° Elbow crimp fitting	Quantity	List price $110.91	Your price	Total $110.91
TS4-FJX45-24-24	1 1/2" Hose x 1 1/2" JIC (1 7/8"-12 thread) 37° Female Swivel, 45° Elbow crimp fitting	Quantity	List price $138.51	Your price	Total $138.51
TS4-FJX45-32-32	2" Hose x 2" JIC (2 1/2"-12 thread) 37° Female Swivel, 45° Elbow crimp fitting	Quantity	List price $255.64	Your price	Total $255.64

Items of 11 items
