Braided Hydraulic Hose
Braided hydraulic hoses most common types are 1 wire and 2 wire hoses. They are either isobaric (same pressure in all sizes) or variable pressure hoses (decreasing pressure as the size gets bigger). The name braided hose comes from the way in which the steel is reinforcement is constructed.
Sort by:
UFWTF
2SNK High Abrasion Cover Braided Hydraulic Hose
| Hose Size (ID) | Rated (psi) | Hose OD (inch) |
| 1/4 | 6,525 | .52 |
| 3/8 | 5,583 | .67 |
| 1/2 | 5,010 | .80 |
| 5/8 | 4,640 | .97 |

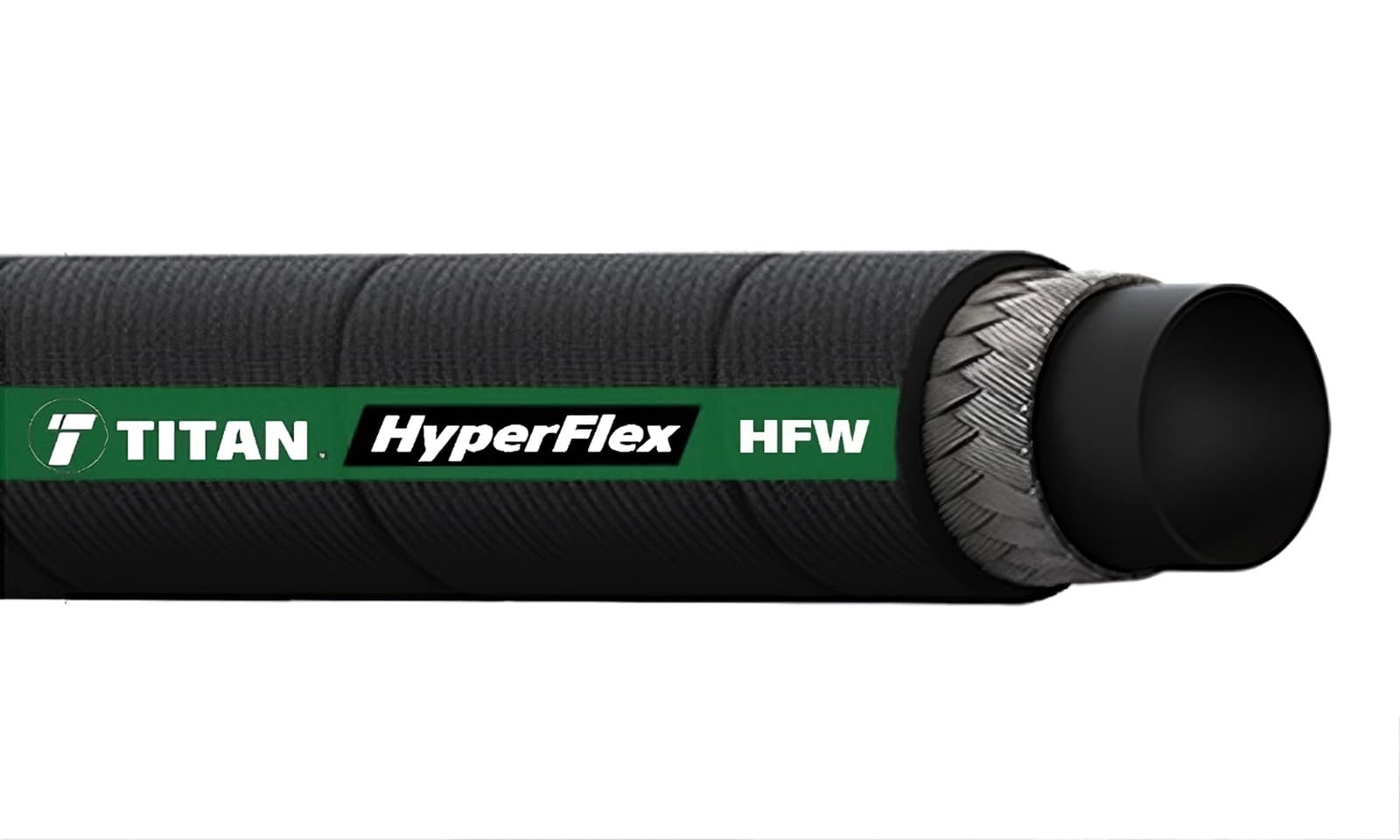

HFW
1SNK High Abrasion Cover Braided Hydraulic Hose
| Hose Size (ID) | Rated (psi) | Hose OD (inch) |
| 1/4" | 4,205 | 0.40" |
| 3/8" | 3,335 | 0.54" |
| 1/2" | 3,045 | 0.67" |
| 5/8" | 2,175 | 0.80" |

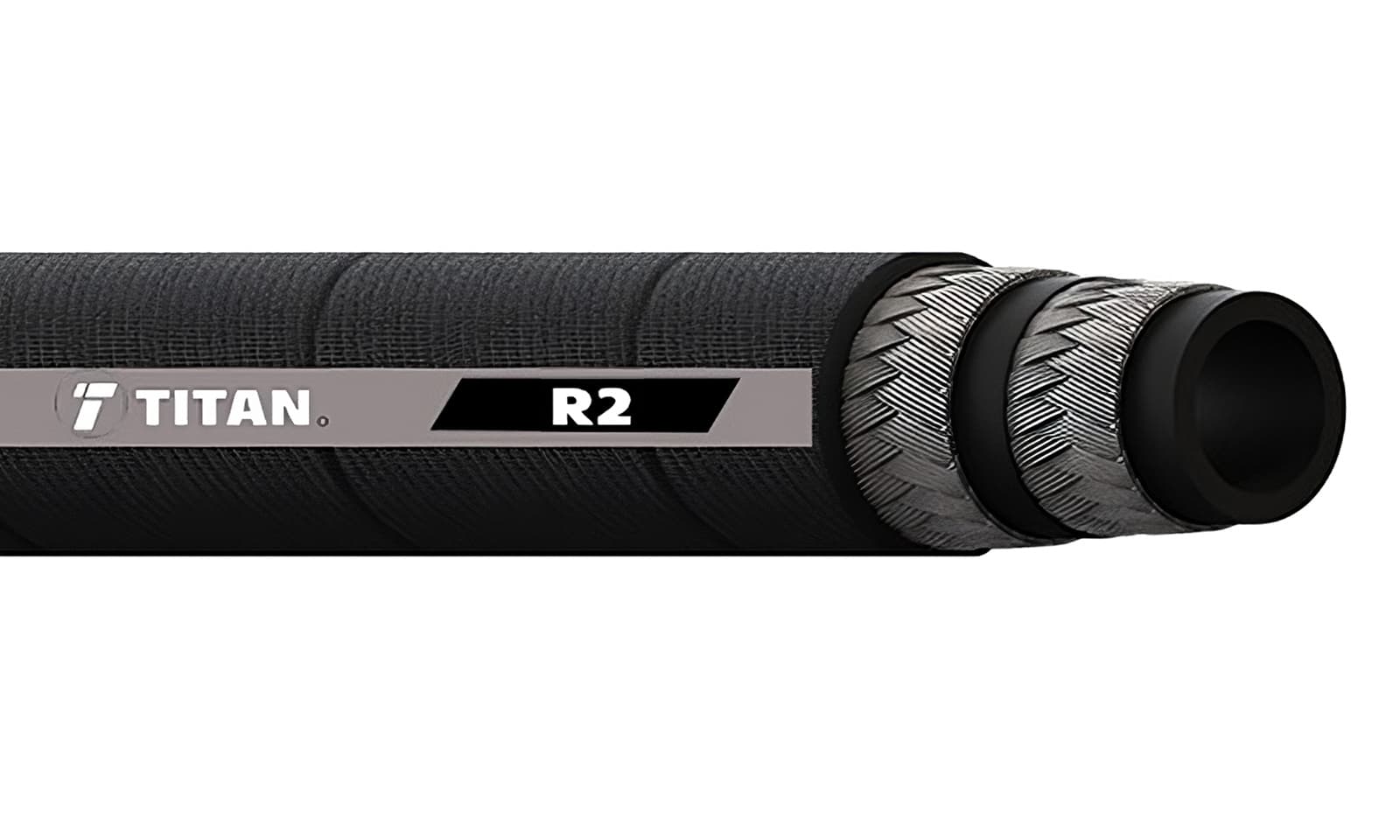

R2S
2 Wire Braided Hydraulic Hoses
| Hose Size (ID) | Rated (psi) | Hose OD (inch) |
| 1/4" | 5,800 | 0.59" |
| 3/8" | 4,785 | 0.75" |
| 1/2" | 3,990 | 0.87" |
| 5/8" | 3,625 | 1.00" |

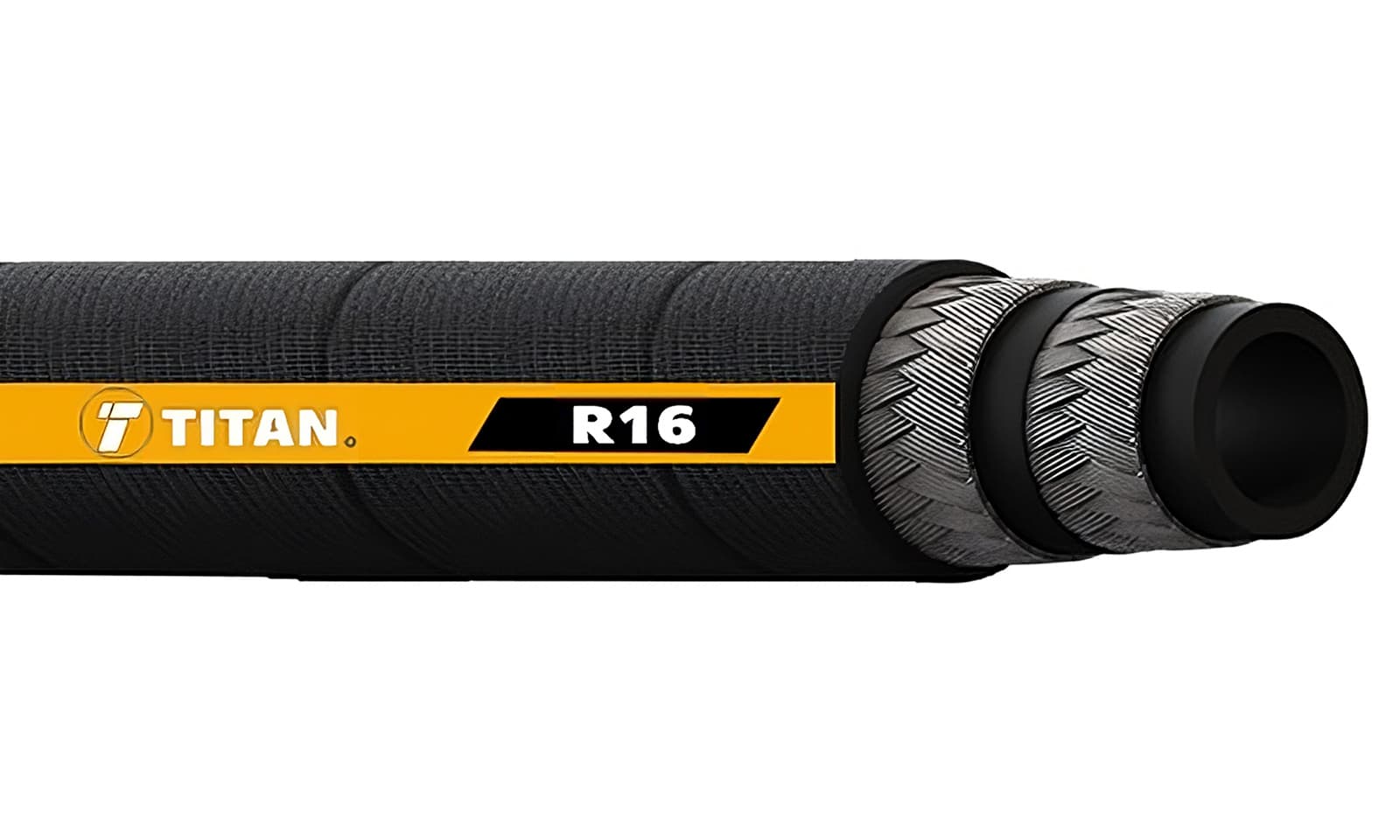

R16S
2 Wire Braided Hydraulic Hoses
| Hose Size (ID) | Rated (psi) | Hose OD (inch) |
| 1/4" | 5,800 | 0.59" |
| 3/8" | 4,785 | 0.75" |
| 1/2" | 3,990 | 0.87" |
| 5/8" | 3,625 | 1.00" |

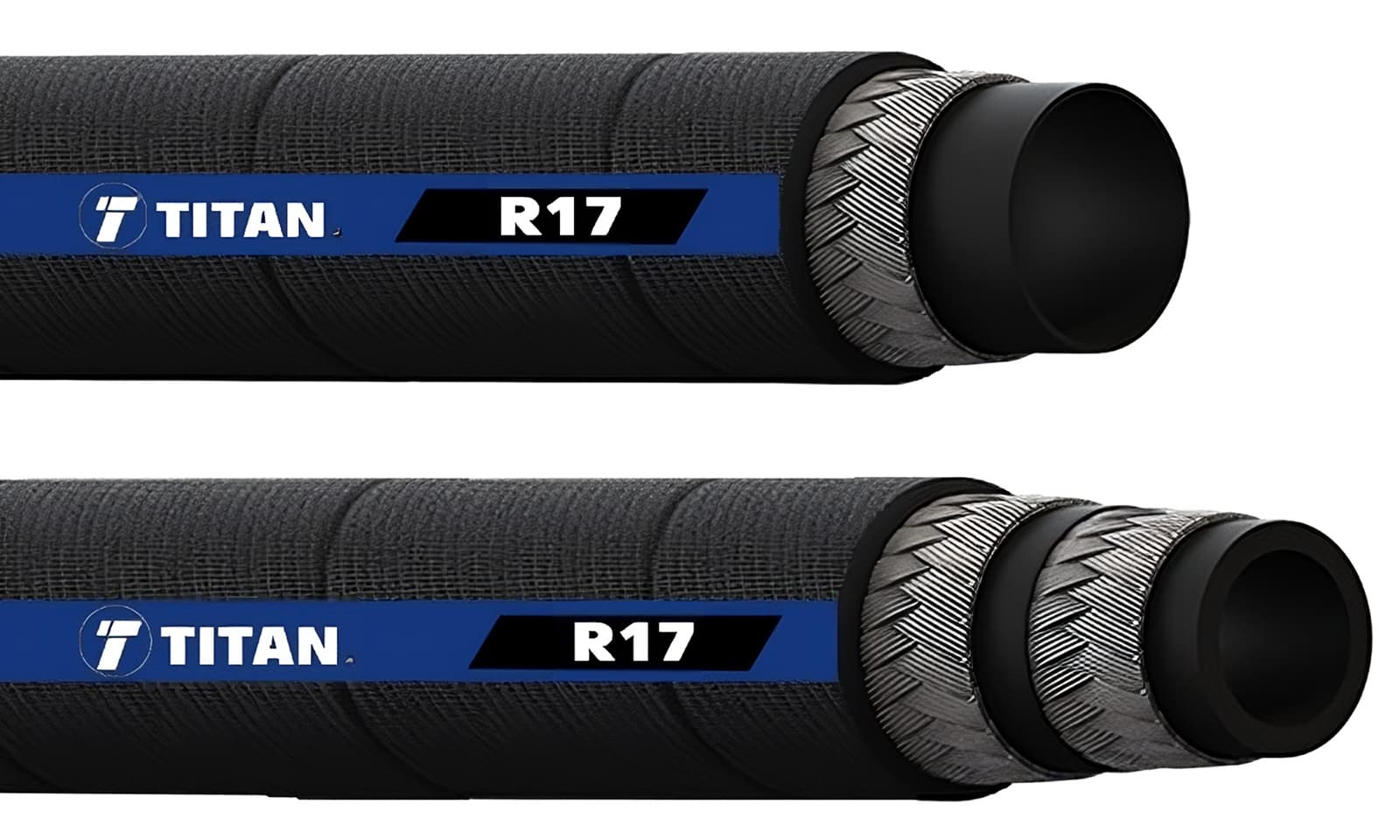

R17
2 Wire Braided Hydraulic Hoses
| Hose Size (ID) | Rated (psi) | Hose OD (inch) |
| 1/4" | 3,000 | 0.49" |
| 3/8" | 3,000 | 0.65" |
| 1/2" | 3,000 | 0.78" |
| 5/8" | 3,000 | 0.94" |

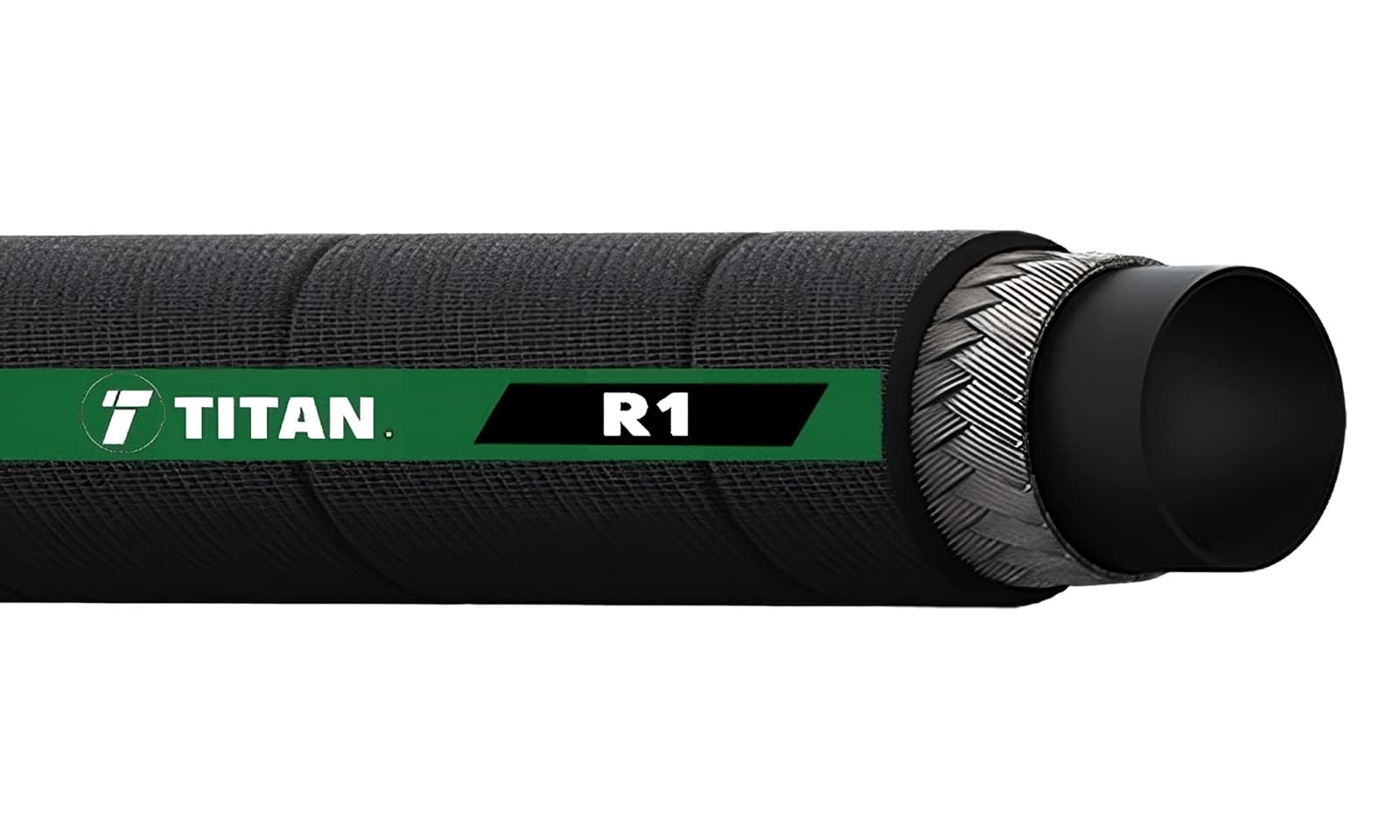

R1S
1 Wire Braided Hydraulic Hoses
| Hose Size (ID) | Rated (psi) | Hose OD (inch) |
| 1/4" | 3,265 | 0.53" |
| 3/8" | 2,610 | 0.69" |
| 1/2" | 2,320 | 0.81" |
| 5/8" | 1,885 | 0.93" |

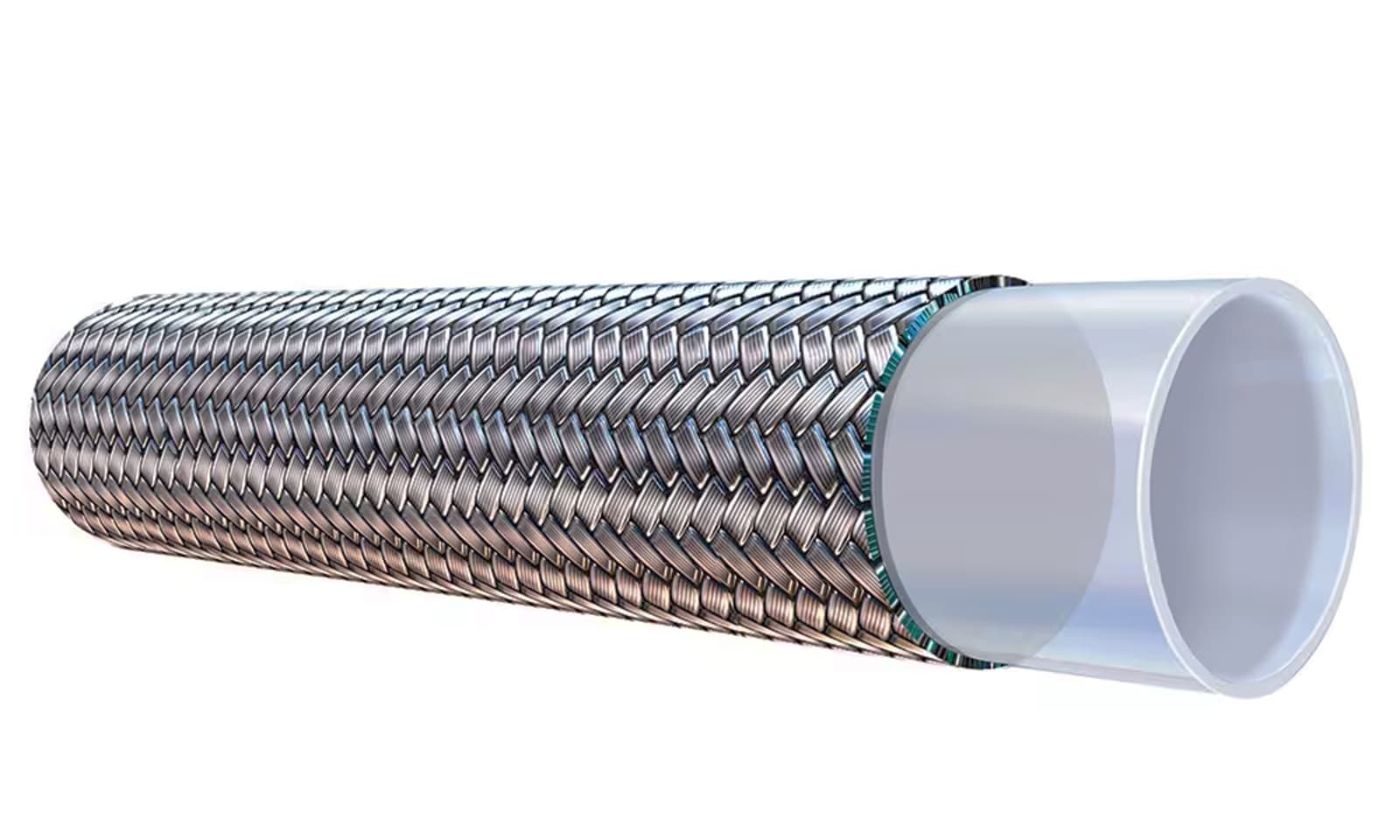

R14
Stainless Steel PTFE Hoses
| Hose Size (ID) | Rated (psi) | Hose OD (inch) |
| 3/16" | 3000 | 0.312" |
| 1/4" | 3000 | 0.375" |
| 5/16" | 2,500 | 0.445" |
| 3/8" | 2,250 | 0.503" |

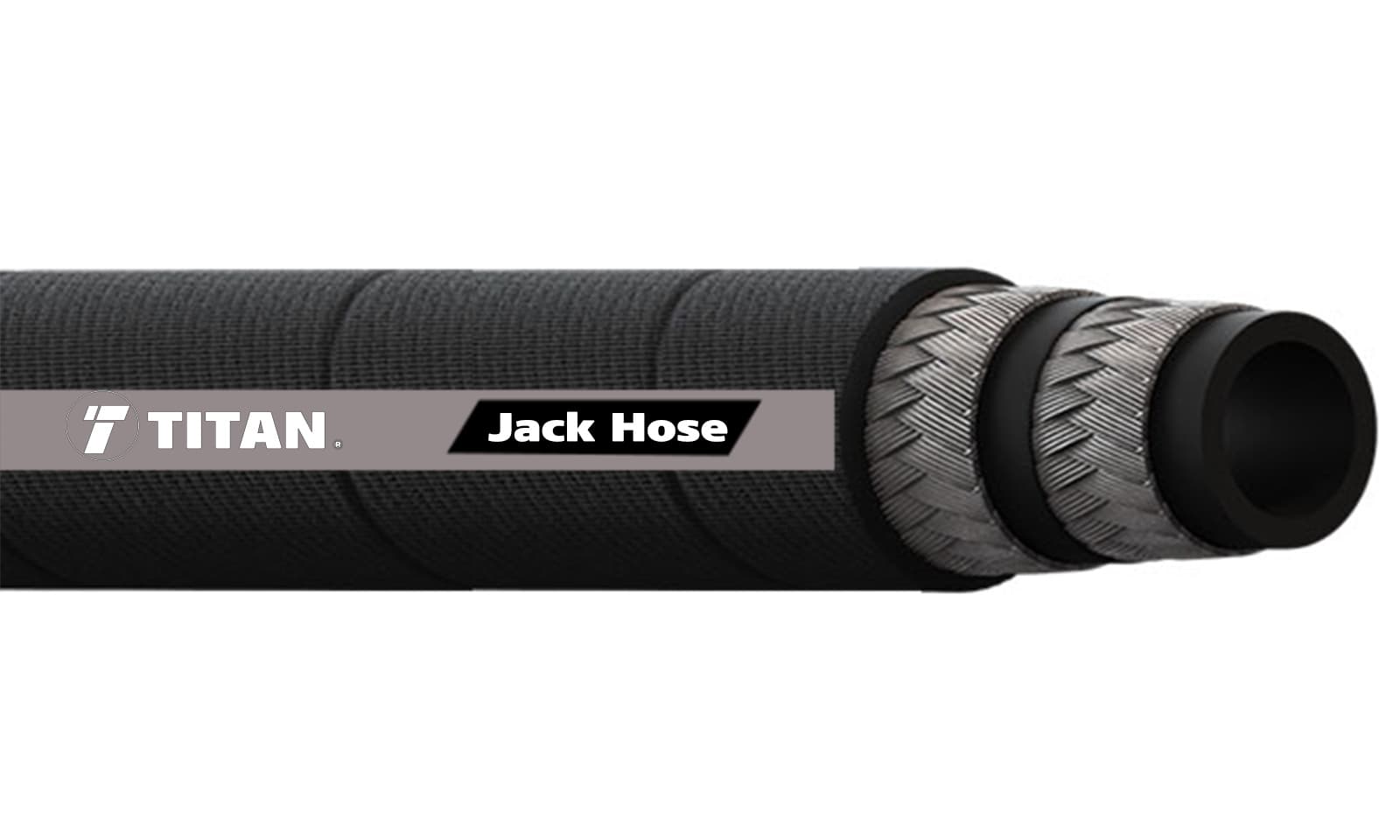

HJK
Hydraulic Jack Hoses
| Hose Size (ID) | Rated (psi) | Hose OD (inch) |
| 1/4" | 10,000 | 0.59" |
| 3/8" | 10,000 | 0.75" |

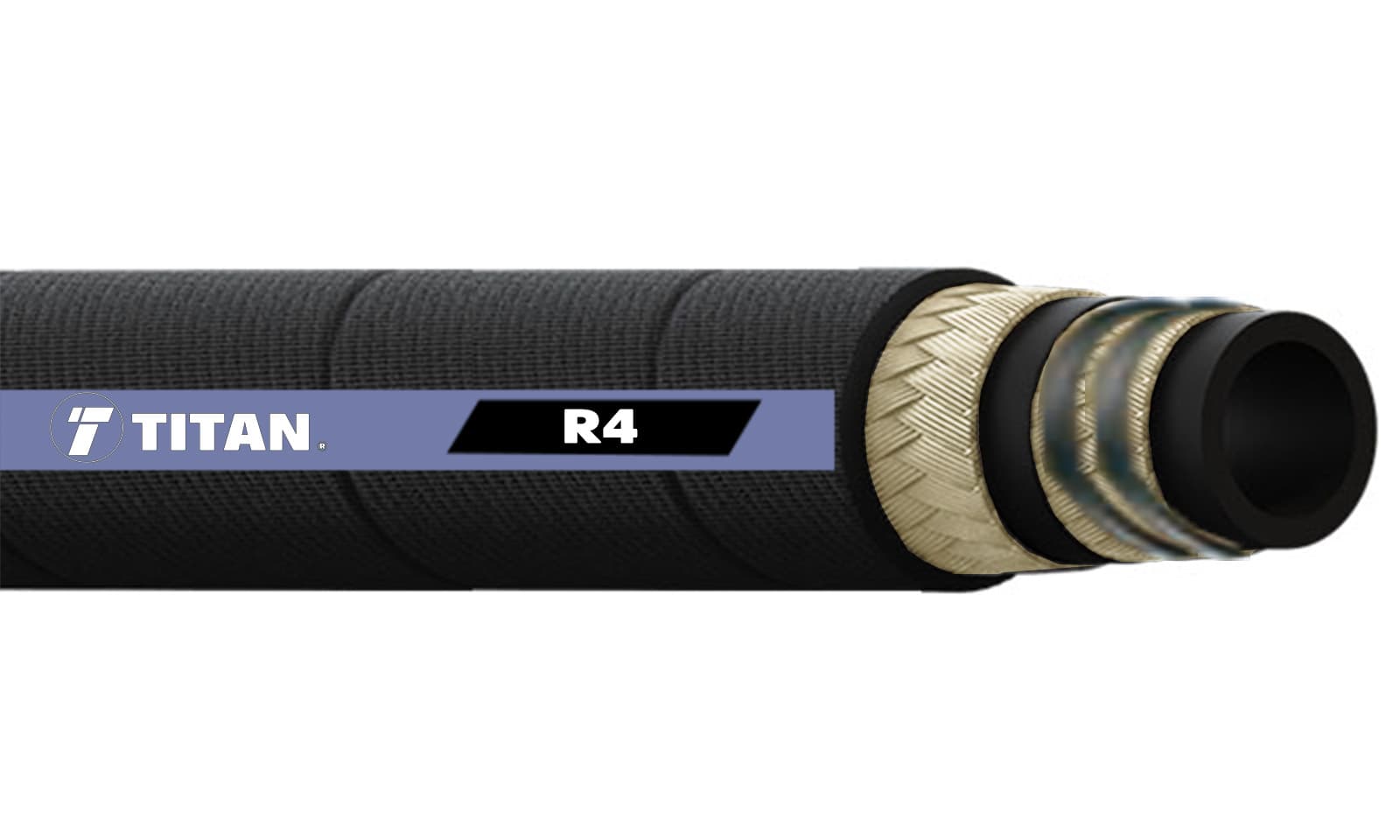

R4
R4 Suction or Return Hose
| HOSE SIZE | RATED (PSI) |
| 3/4" | 300 |
| 1" | 250 |
| 1 1/4" | 200 |
| 1 1/2" | 150 |

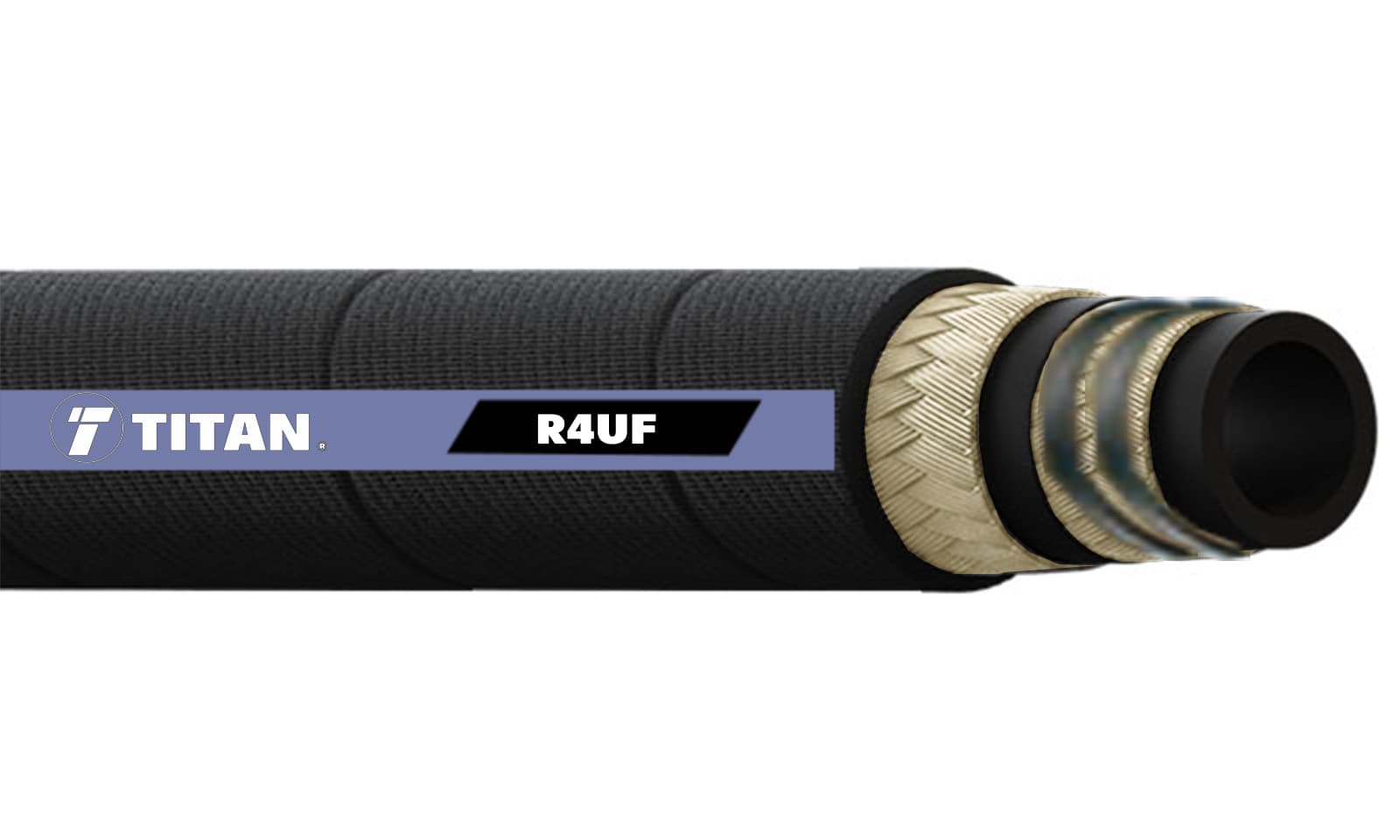

R4UF
Ultraflex SAE 100R4 Suction or Return Hose
| HOSE SIZE | RATED (PSI) | HOSE OD (INCH) |
| 1" | 300 | 1.50 |
| 1 1/4" | 250 | 1.81 |
| 1 1/2" | 250 | 2.05 |
| 2" | 200 | 2.56 |
